Custom Multi-Axis Slide & Spindle Assemblies in Production

View custom multi-axis slide and spindle assemblies built for grinding, milling, cutting, rolling and spinning operations. Each system reflects application-specific engineering designed to perform under continuous-duty OEM production demands.

Request a Quote

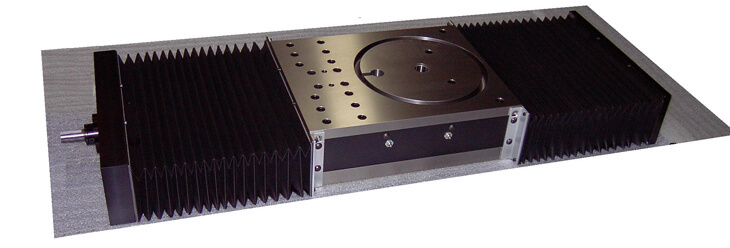

LRW16: low profile roller way slide with accordion way covers and special circular tee slot. Used for grinding.

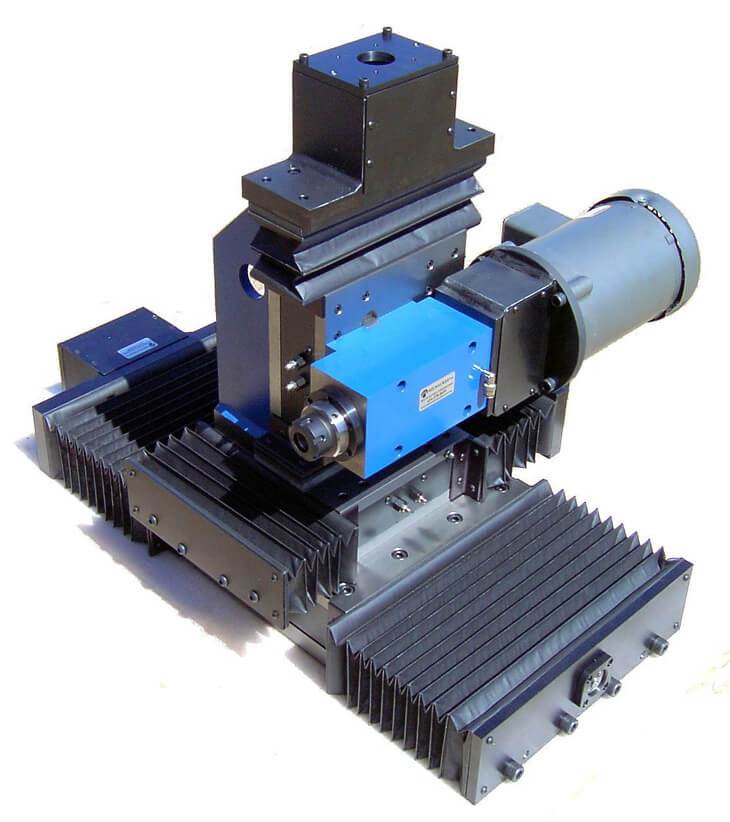

MB275/LBW8/LBW8/LBW12: one spindle and three axis slide assembly with linear ball bearings, ground ball screws and motor mounts. Used to mill a chamfer on an aluminum part.

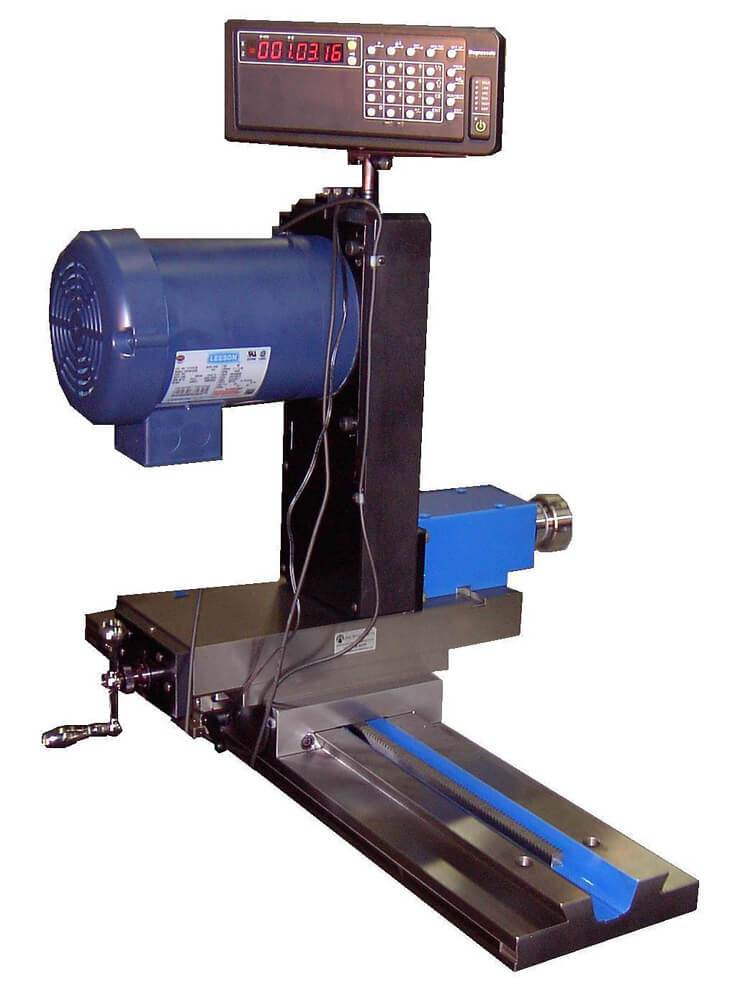

CB8/HSD6/MB275: 2 linear axes and one rotary axis assembly with rack and pinion drive and digital readout. Used to mill rubberliners.

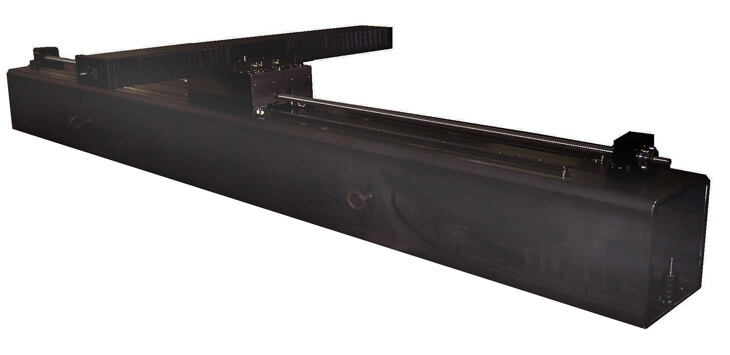

LBW6/LBW10: 6" wide low profile ball way slide mounted on a 10" wide ball way slide with a 132" long x 12" square tube as a base. Used to cut carbon fiber.

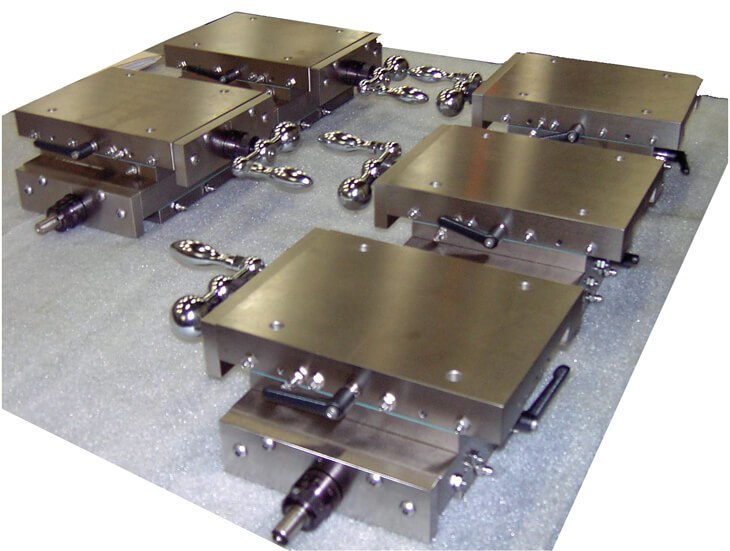

RSD6/RSD6: five compound dovetail slide assemblies with Turcite® ways and electroless nickel plating.

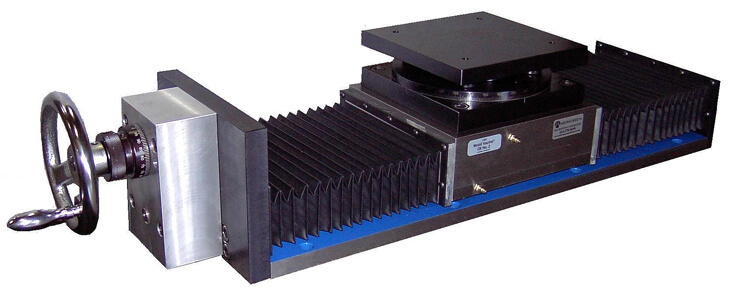

LHW9: 9” wide low profile hardened way slide with acme lead screw, hand wheel, offset drive, accordion way covers and SW8 swivel. Used for grinding.

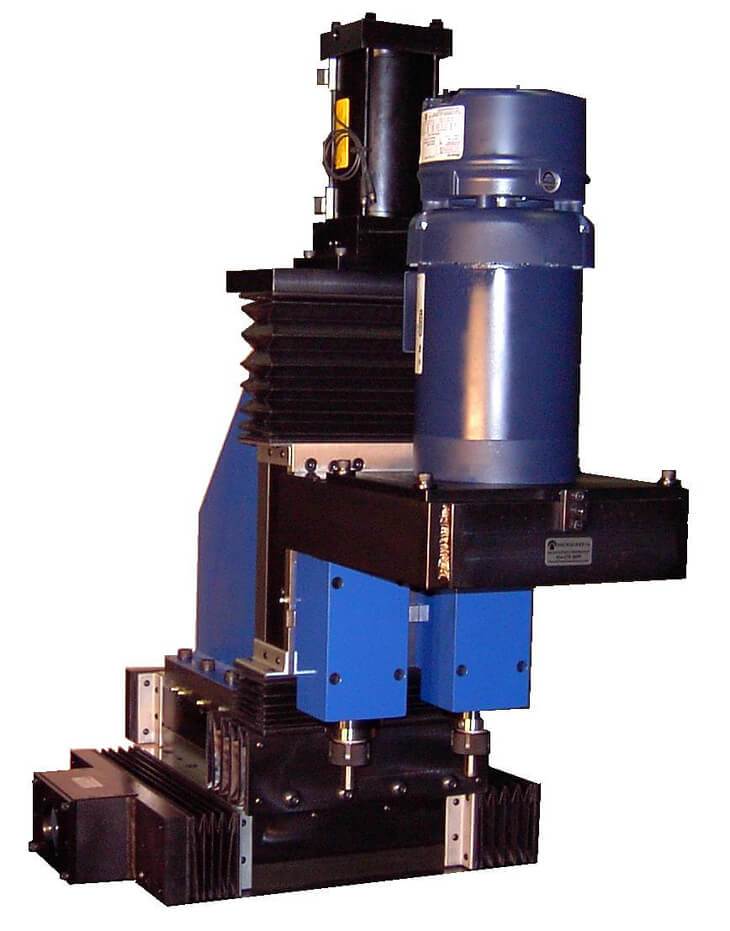

MB275/MB275/LBW10/ LBW10/LBW12: two spindles mounted to a three axis slide assembly with ball screws, motor mounts, accordion way covers and air cylinder. Used for cutting paper rolls.
PDR_0542alt

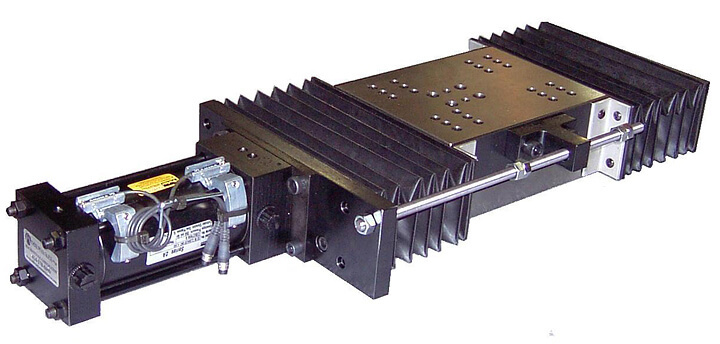

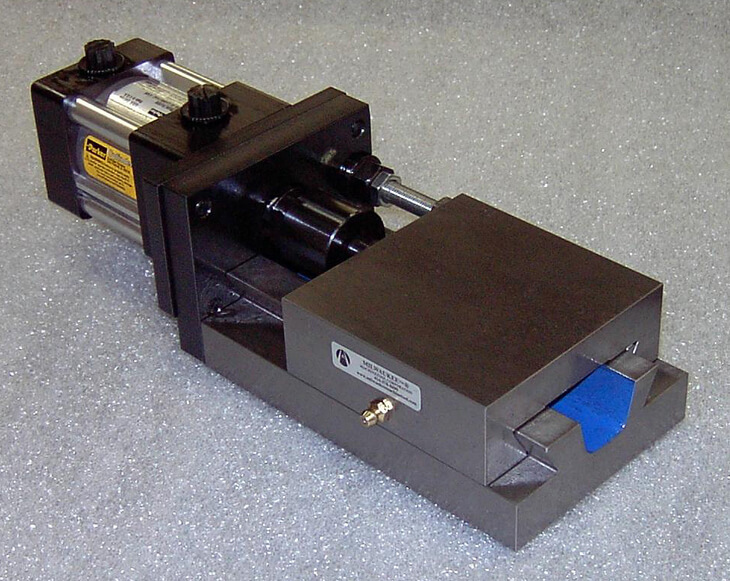

CB4: dovetail slide with air cylinder and stop rod. Used for tooling.

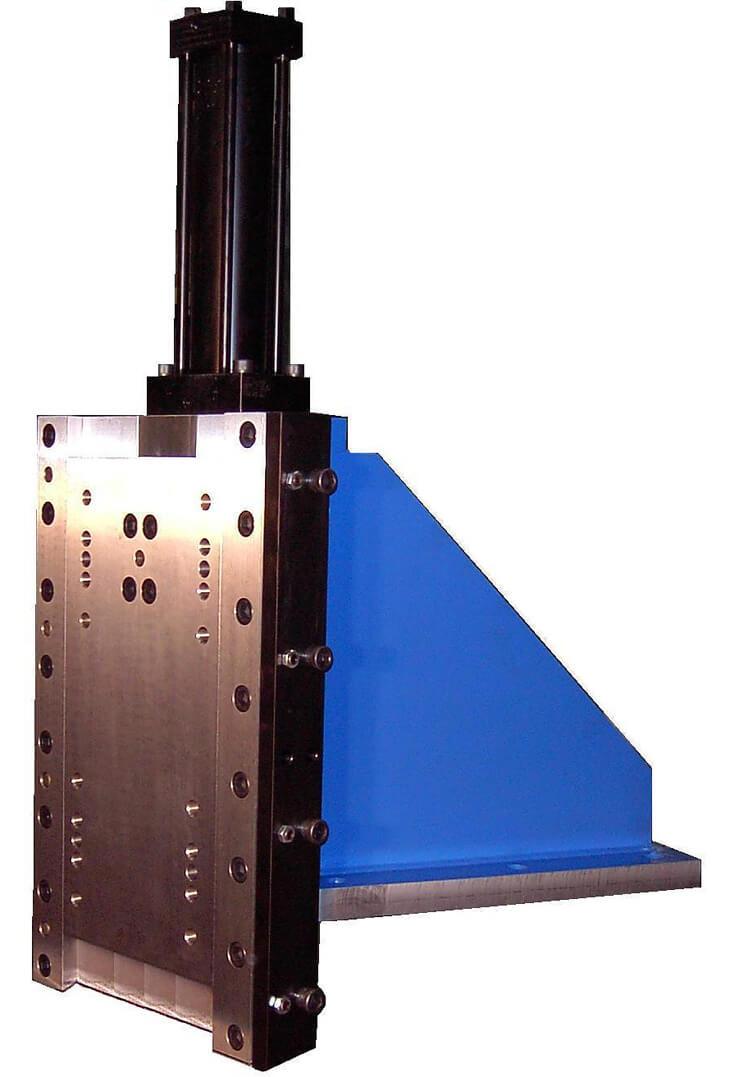

SP16/A16: special dovetail slide and 32" tall angle plate assembly with hydraulic cylinder. Used for thread spinning.

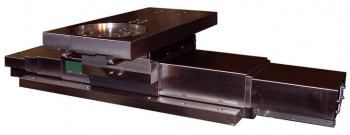

LRW12/HRW12: two axis slide assembly with metal way covers and special machining on the top saddle. Used for metal spinning.
