Machine Tool Slide Selection Guide
Milwaukee MachineTool manufactures machine slides for OEMs, machine builders, production equipment and custom automation systems. Our product line includes dovetail slides, hardened-way slides and linear-guide slides designed for controlled positioning, rigid support and durable performance in demanding industrial applications. Standard models can also serve as starting points for modified or application-specific slide solutions.
Use our Dovetail Slide Design Guide and Slide Selection Overview to compare load capacity, travel, duty cycle, drive configuration, mounting requirements, available space and budget before selecting a slide assembly. If you need help determining which slide family or configuration fits your machine, talk with an MMT engineer or send us your drawings and application requirements.
Factors to Consider When Choosing a Machine Slide
Machine slide selection depends on how the slide will be loaded, driven, mounted and used during production. The right slide model should support the required motion without sacrificing rigidity, repeatability or service life.
Accuracy and Precision
Accuracy requirements should guide the slide style, bearing type and drive configuration. Dovetail slides provide controlled linear motion, hardened way slides add stiffness and vibration resistance, while linear guide slides offer low-friction travel for precise positioning.
Loading
Evaluate the load on the saddle, force direction and amount of overhung weight. Heavy service dovetail slides, contoured base dovetail slides and hardened way slides support higher loads, while linear guide slides balance load capacity with smooth travel.
Duty Cycle
Cycle frequency, operating speed, lubrication access and maintenance needs all influence slide selection. Dovetail and hardened way slides provide rigidity for demanding use, while rolling element linear guide slides reduce friction in high-cycle applications.
Budget
Budget should account for initial cost, service life, rebuildability, drive requirements and installation complexity. Dovetail slides may fit compact or moderate-duty needs, while hardened way or linear guide slides may better serve high-load or high-accuracy systems.
Size of Mounting Surface and Travel
Mounting surface size, machine envelope and required stroke length help determine the right slide model. Compact RS and RSD slides fit limited spaces, while HS, HSD, contoured base and linear guide slides support heavier, longer or more specialized motion requirements.
Milwaukee MachineTool Slide Models
Milwaukee MachineTool Corporation offers multiple machine slide models for spindle feeding, production machining, precision positioning and custom automation. The following overview can help engineers compare slide families before reviewing detailed dimensions, drive options and model-specific specifications.
Linear Guide Slides
Low Profile Linear Guide Slide with Ball Bearing (LBW) Series
Smooth ball bearing motion in a compact slide height for low-profile machine designs.
Low Profile Linear Guide Slide with Roller Bearing (LRW) Series
Roller bearing support for added rigidity and higher load capacity.
High Profile Linear Guide Slide with Ball Bearing (HBW) Series
Smooth ball bearing travel in a high-profile slide design for precision positioning and spindle feed applications.

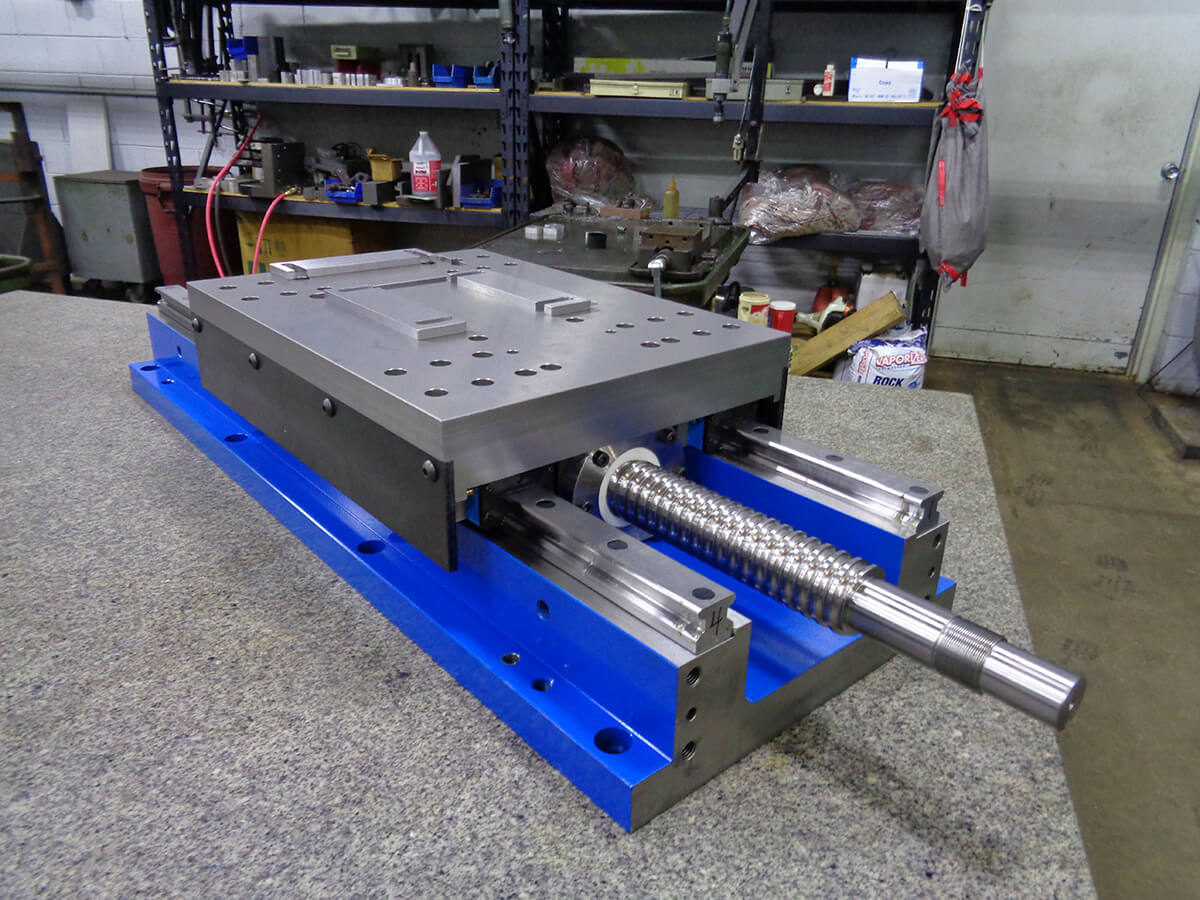

High Profile Linear Guide Slide with Roller Bearing (HRW) Series
High-profile slide construction with roller bearing support for rigid, low-friction motion under heavier loads.
Dovetail Slides
Regular Service (RS) Slide Series
Compact dovetail slide for general-purpose machine motion, lighter-duty applications and stable linear travel in limited-space setups.
Regular Service with Leadscrew Drive (RSD) Slide Series
Adds an integrated leadscrew drive to the RS platform for controlled positioning, spindle feed and compact travel adjustment.
Heavy Service (HS) Dovetail Slide Series
Robust dovetail slide design with durable sliding contact, stable travel and rigid support for moderate to heavy machining movements.
Heavy Service Dovetail with Drive Screw (HSD) Slide Series
Features screw-driven motion for repeatable feed adjustment, controlled axis movement and higher-load positioning.
Contoured Base (CB) Slide Series
Heavy-duty dovetail slide built for accuracy under load, with a contoured base designed to support the saddle through its stroke.
Contoured Base with Flanges (CBF) Slide Series
Added flange mounting flexibility for more complex machine layouts.
Contoured Base Dovetail Slide With Drive Screw
Combines contoured base rigidity with mechanical screw-driven motion for controlled travel in higher-load applications.
Contoured Base Dovetail Slide with Cylinder Drive
Supports powered linear actuation for repeated feed movement, automated motion sequences and production equipment.
Hardened Way Slides
High Profile Hardened Way Slide
Features height, stiffness and support for machining applications with heavier mounted components or clearance requirements.
Low Profile Hardened Way Slide
Rigid, accurate travel in a lower-height assembly for machine layouts with limited vertical space.
Hardened Way Slide Drive Screw
Controlled mechanical movement for feed, adjustment and positioning tasks requiring stiffness and repeatability.
Hardened Way Slide Cylinder Drive
Support powered linear actuation for automated feed movement, repeated production cycles and rigid machine motion.
