IMTS Automation Cell with Robotics and Machining Integration

Built to demonstrate real-world automation capability, this gallery highlights a custom system developed for the IMTS show. The cell integrates Fanuc robots, multi-axis positioning, pallet handling and MC40 spindle machining to showcase coordinated motion, flexibility and turnkey system integration.

Request a Quote

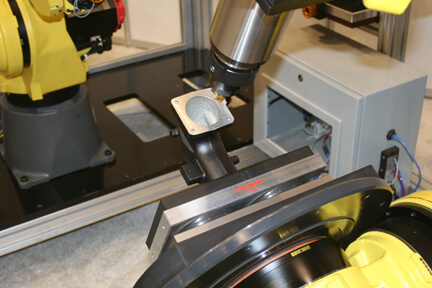

2-Axis Postioner rotated along with F-200iB with spindle normal to work-piece face to show flexibility.

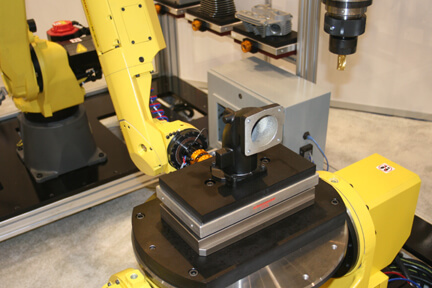

M20iA Robot placing part and Hirschmann pallet on Hirshmann pnuematic chuck via 2-Axis postioner for presentation to MC40 spindle endmill machining.

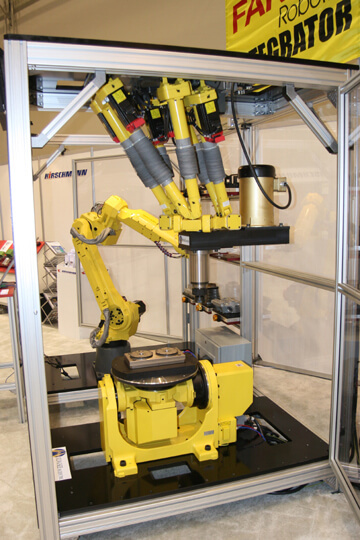

GE Fanuc F-200iB hung vertically with MC40 spindle, 5Hp,3600 RPM, 2-Axis Rotary Table, M20iA part transfer Robot. Custom Enclosure for IMTS Show only.

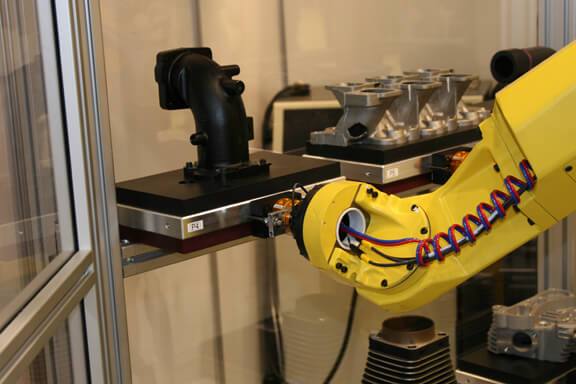

M20iA shown picking a part using Hirschmann Pallet System.

Milwaukee MachineTool Corp. would like to thank Hirschmann and all the vendors who collaborated in creating this cell for the IMTS 2008 show!

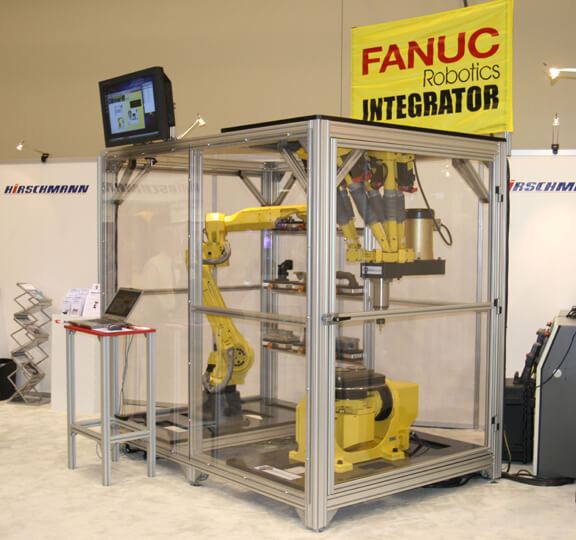

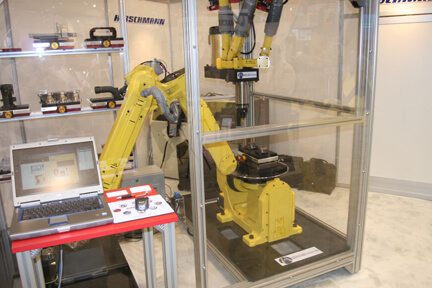

Show enclosure door open for easier viewing.

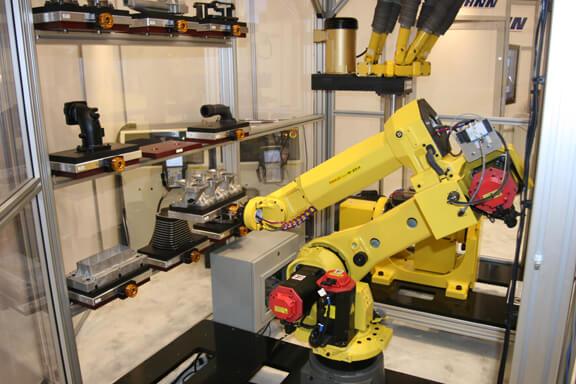

M20iA Robot with ATI end-effector for clamping and unclamping Hirschmann pallet.

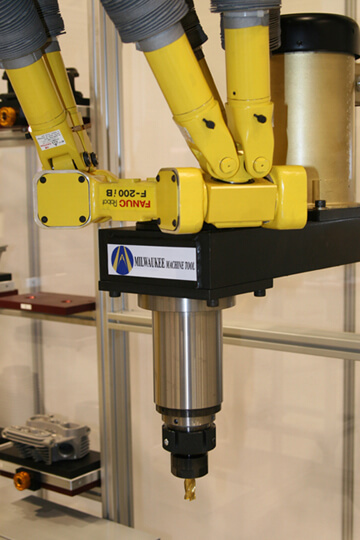

Close-up of MC40 Spindle with Kennemetal Quick Change tool holder, collet, and 1/2" endmill.

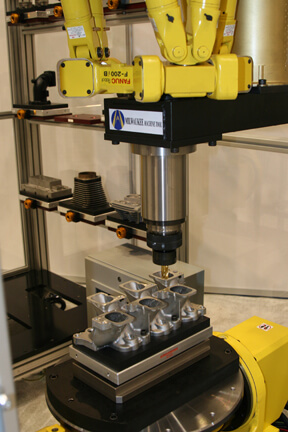

F-200iB Robot showing a tool-path.
