Mazak Powermaster Lathe Bed Precision Surface Grinding
This project documents the precision surface grinding of a Mazak Powermaster lathe bed performed on our Favretto TU600 surface grinder. Images show the grinding process and finished results, achieving ±.0002” accuracy over 172.5” to restore alignment, flatness and long-term machine performance for heavy-duty machining applications.
Project Goals
- Restore machine base flatness and alignment through precision surface grinding
- Support machine tool rebuilding and refurbishment efforts
- Achieve ±0.0002” accuracy across 172.5 inches
- Extend the service life of a large industrial machine tool
- Provide a cost-effective alternative to machine replacement

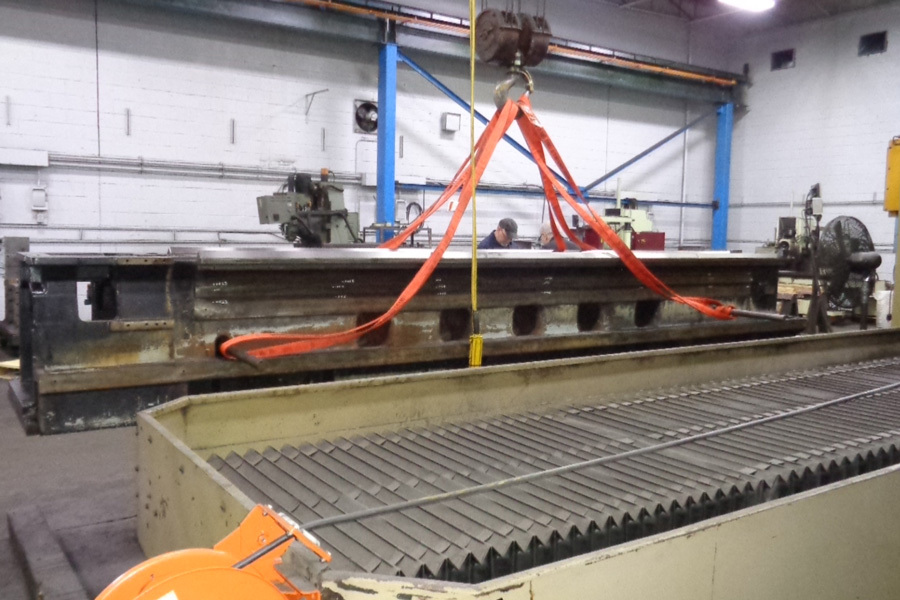

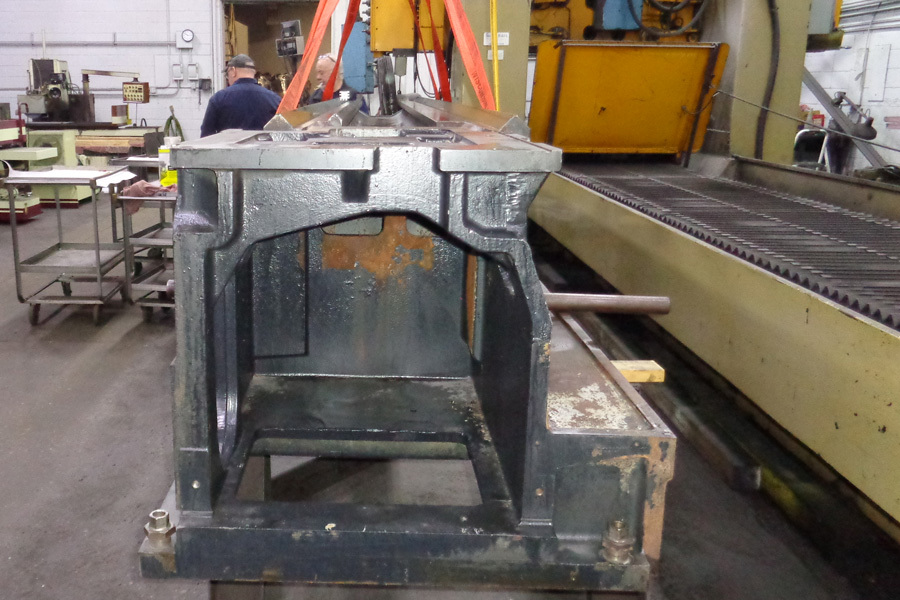

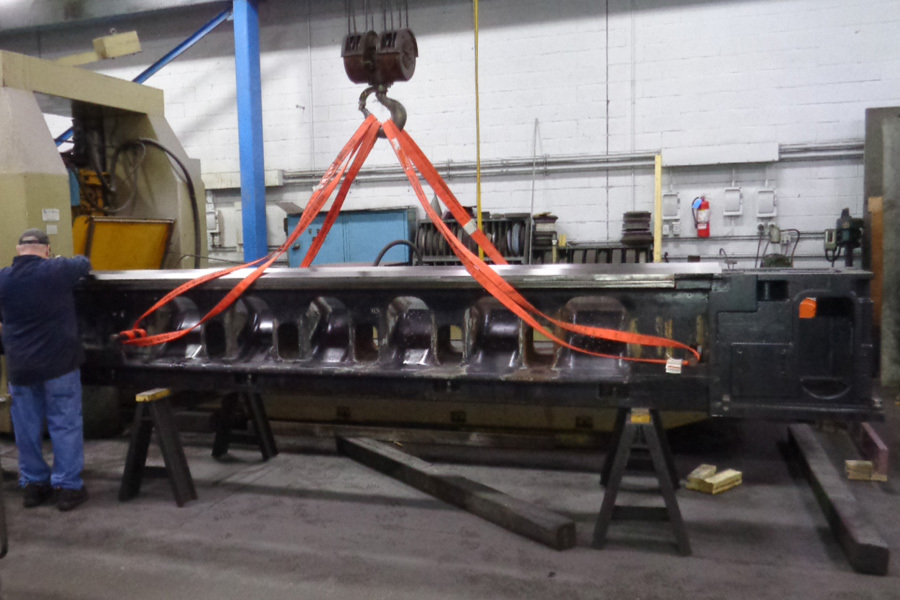

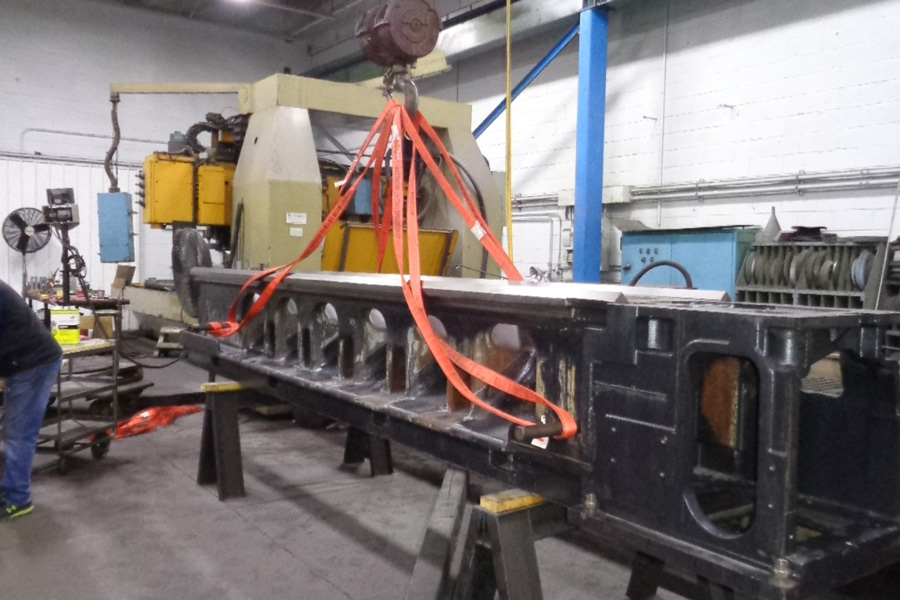

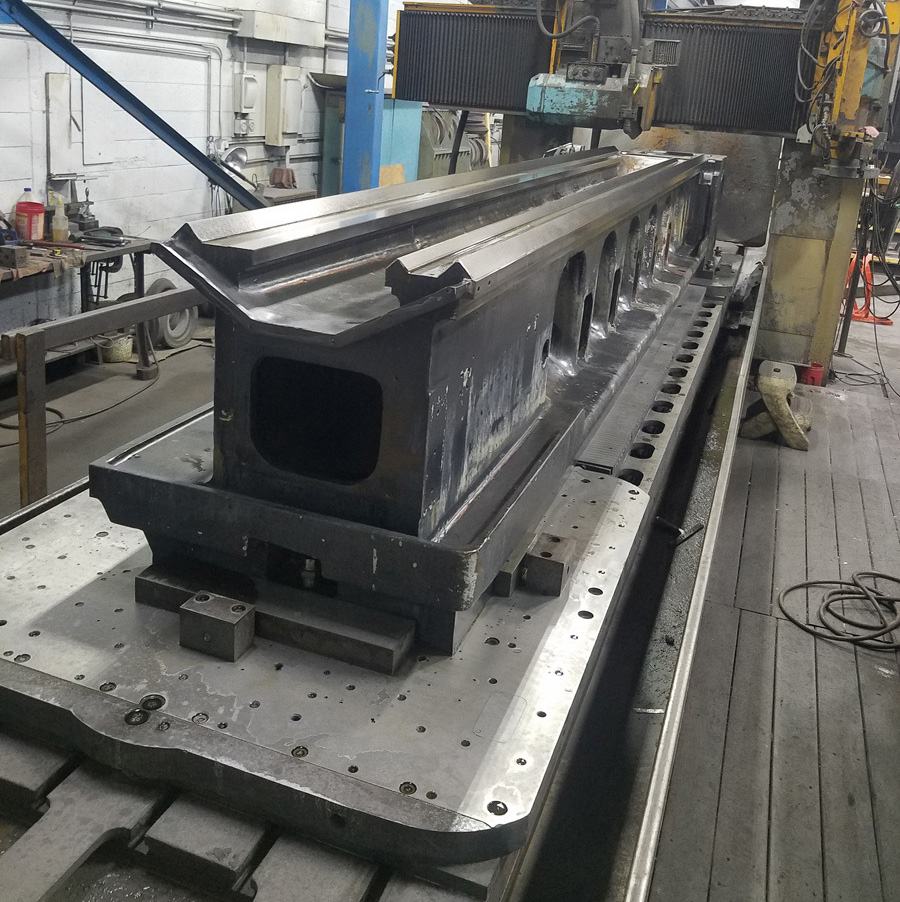

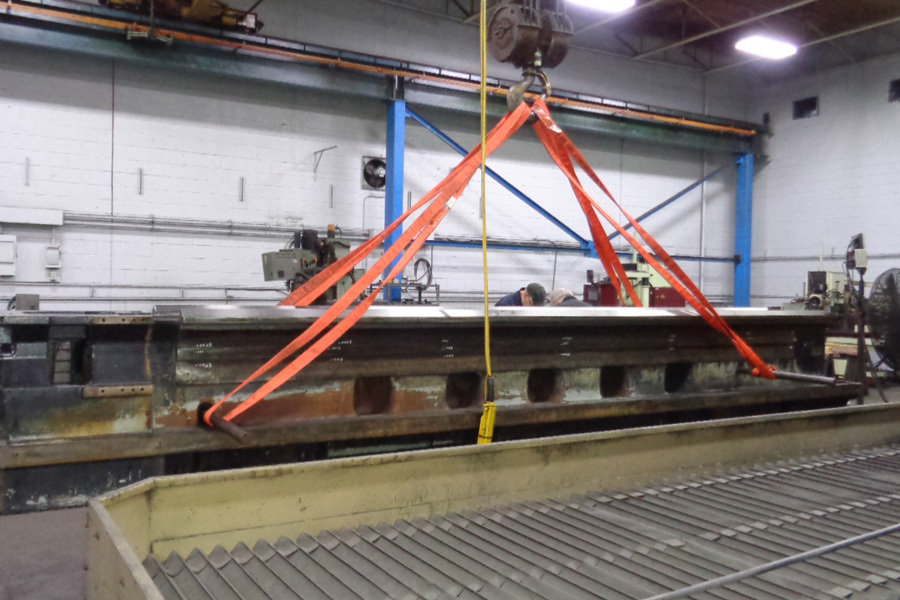

This gallery highlights both the large component grinding process and the finished precision-ground surface, demonstrating the level of accuracy required when performing machine base restoration on large CNC machine tools.
Project Details

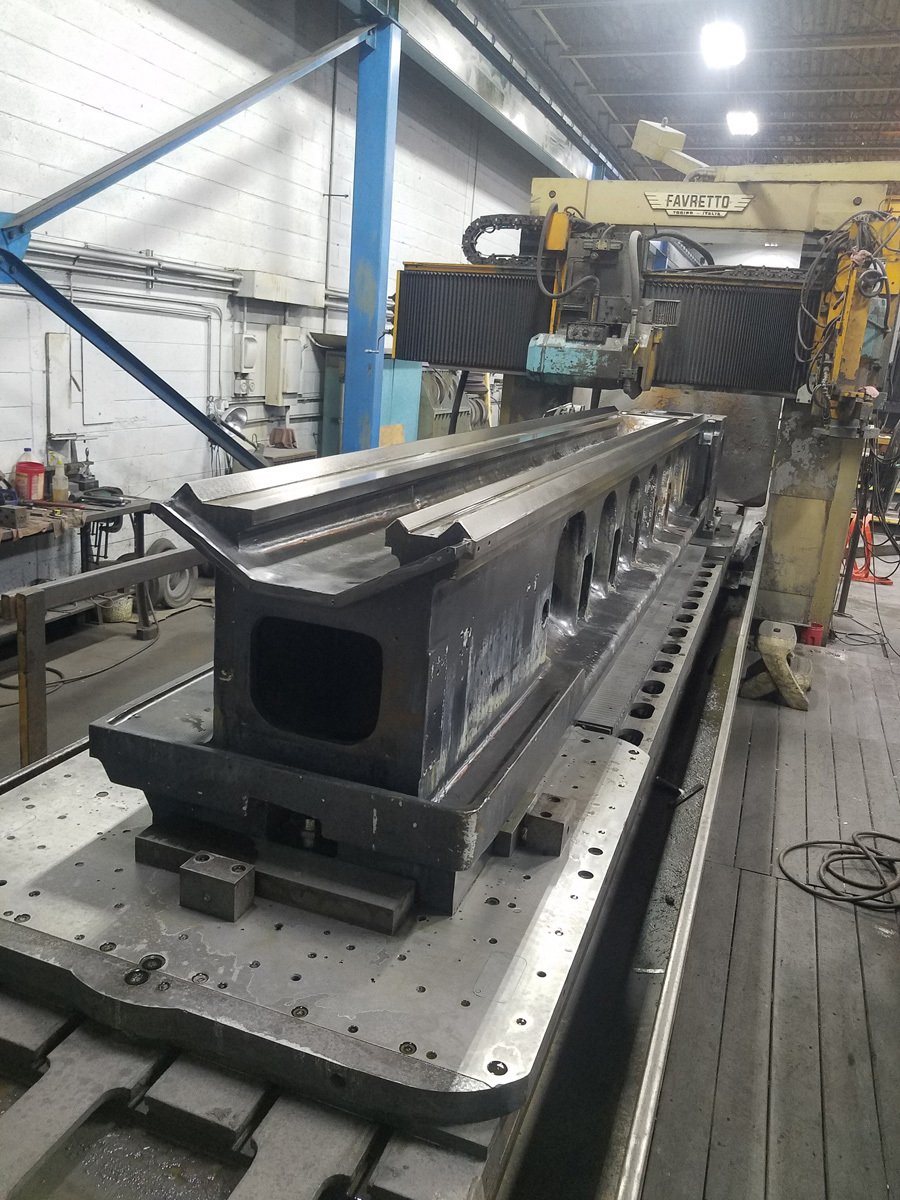

This project showcases the precision surface grinding and restoration of a large machine tool base, specifically a lathe bed from a Mazak Powermaster Lathe. The work was completed using our Favretto TU600 Surface Grinder, demonstrating our capability in large component grinding, machine tool rebuilding, and machine base restoration for heavy industrial equipment.
Large machine tools such as CNC lathes rely on extremely flat and properly aligned bed surfaces to maintain machining accuracy. Over time, heavy cutting forces, thermal cycling, and long-term use can lead to wear or distortion in the machine base. When this occurs, precision surface grinding is one of the most effective methods to restore critical geometry without replacing the entire machine.
For this project, our team performed large-scale precision grinding over a 172.5-inch span, restoring the lathe bed to ±0.0002” flatness and alignment. Achieving this level of accuracy across such a large surface requires specialized grinding equipment, precision metrology, and experienced machinists. The restored machine base ensures the lathe can once again maintain proper alignment of guideways, carriages, and tooling—critical for producing accurate parts and maintaining long-term machine performance.
Projects like this support industries that rely on high-precision machining and large machine tools, including aerospace, defense manufacturing, heavy equipment production, and industrial machining operations. Through machine tool rebuilding and precision grinding services, manufacturers can restore worn equipment, improve machining accuracy, and significantly extend the operational life of expensive capital equipment.
