Multi-Axis Machine Modules, Inline Spindles and Precision Automation Systems

This gallery features engineered machine modules, including inline spindles, multi-axis slide systems and precision boring assemblies. Designed for high-performance automation, our builds demonstrate Milwaukee MachineTool Corporation’s experience with complex motion control and integrated machining solutions.

Request a Quote

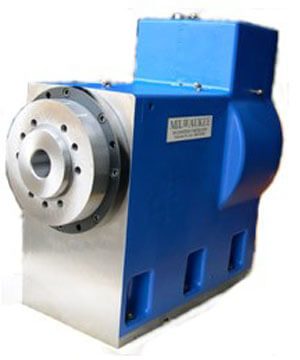

100HP Headstock Spindle In-Line Driven through Helical Spur Gears. Pump assisted from sump oil bath lubrication

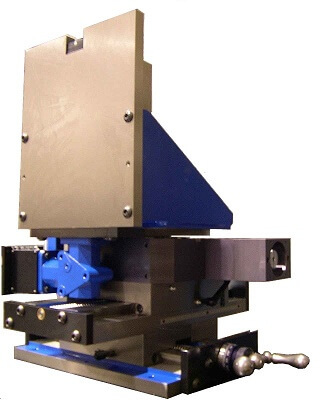

4-Axis Slide Compound Module for Calibrating MRI

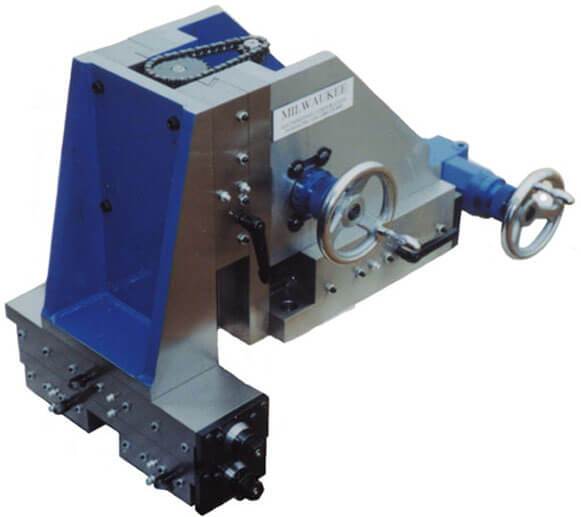

Multi Axis Dovetail Module Component for Battery Terminal Welding Machine

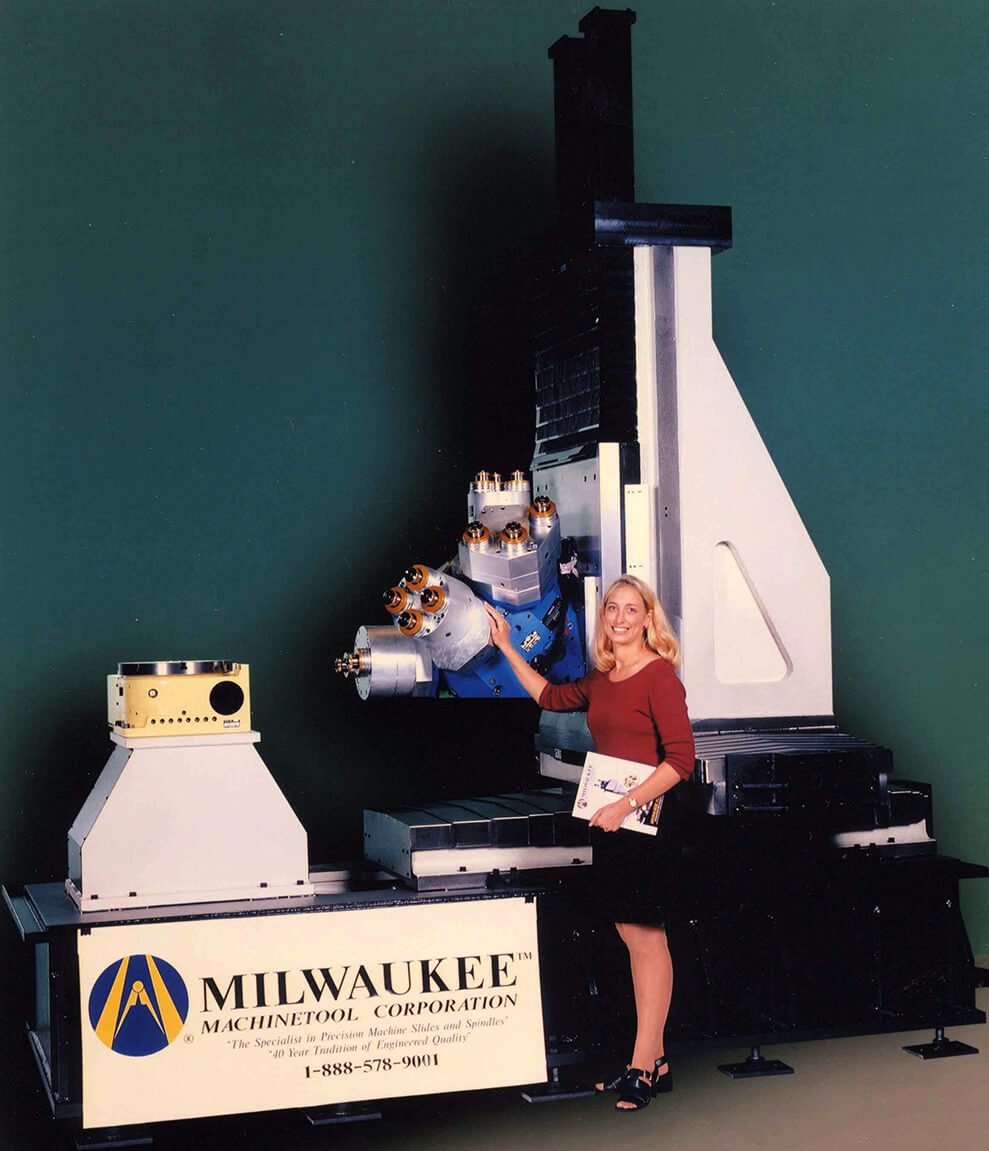

Flexmatic 4-axis Machining Cell 6-Head Turret/Rotary Table/Special Base with Chip Flume. Custom Enclosure

Block Spindle Standard Block Spindles.

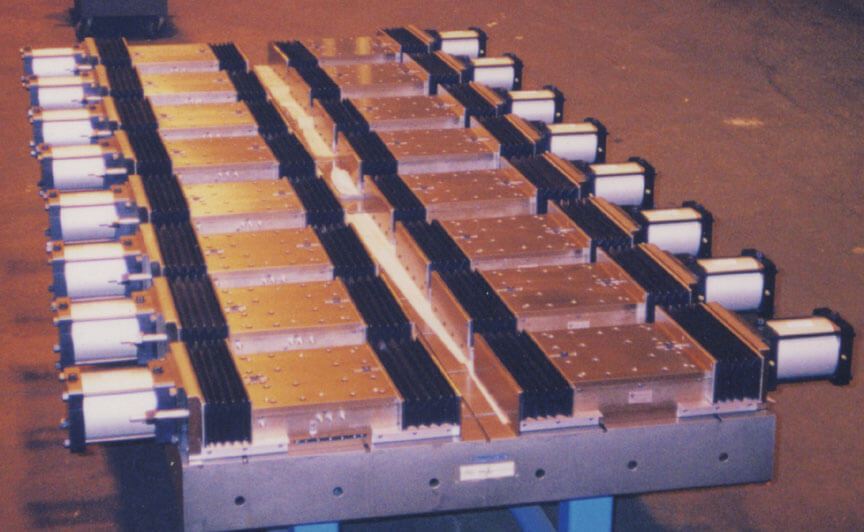

12" Wide Ball Way Slides Pneumatic Cylinder Drive with Nickel Plating

2-Axis Module/Cartridge Spindle Quick Change Erickson Collet Nose. Pneumatic Cylinder with Hydrocheck Feed Unit.

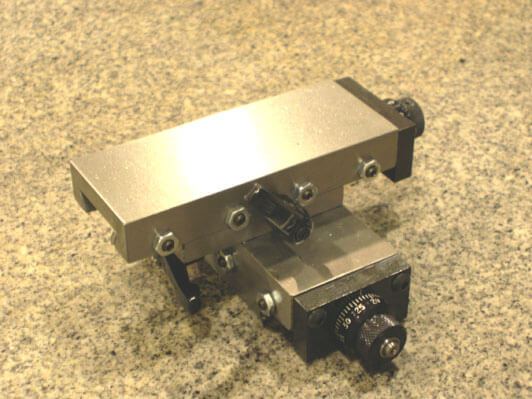

Regular Service Dovetail 2" Comp. Dovetail Slide.

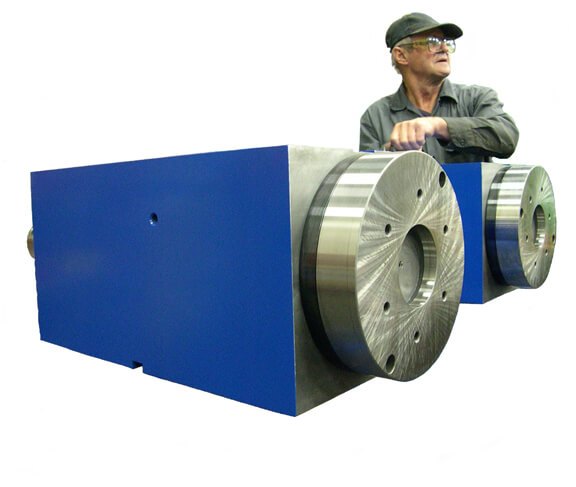

MB1100 Block Spindles.
