Quill Spindle and Gearbox Assemblies

Explore detailed views of quill spindle and gearbox assemblies, including lead screw drives, spindle noses, lubrication features and internal components. Our images document precision-built assemblies used in industrial machining applications.

Request a Quote

Quill spindle with spindle nose at left, quill clamp housing in the center and flange and gear box to the right

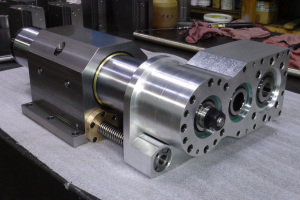

Gear box and flange with lead screw drive

Gear box with motor mount at left, quill clamp housing in center and spindle nose at right

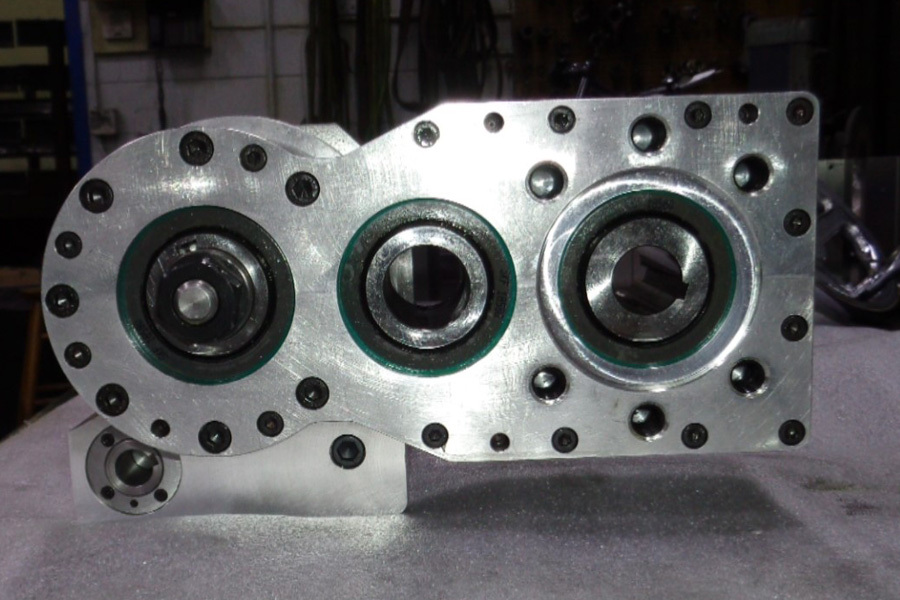

Gear box with manual draw bar at left, idler gear in center and motor mount at right

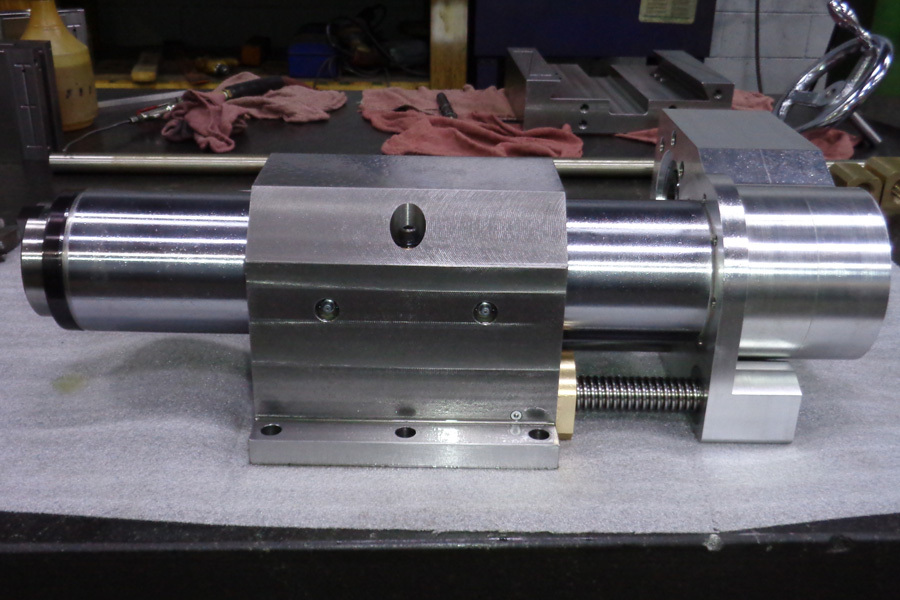

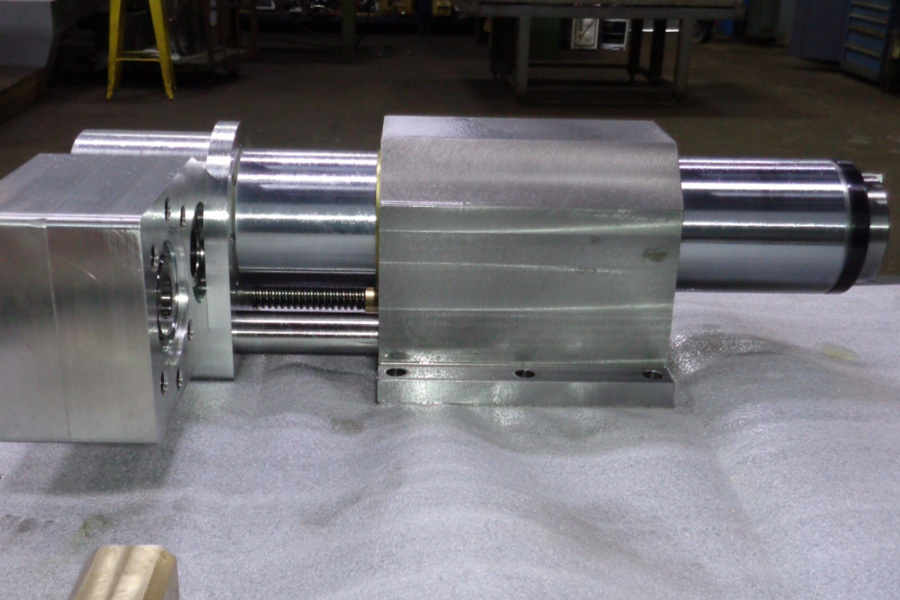

Gear box at left, guide rod and quill clamp housing in center and spindle nose at right

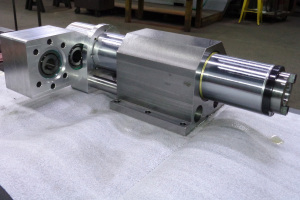

Gear box at left with alternate motor mount shown. Guide rod and quill clamp housing in center and spindle nose at right

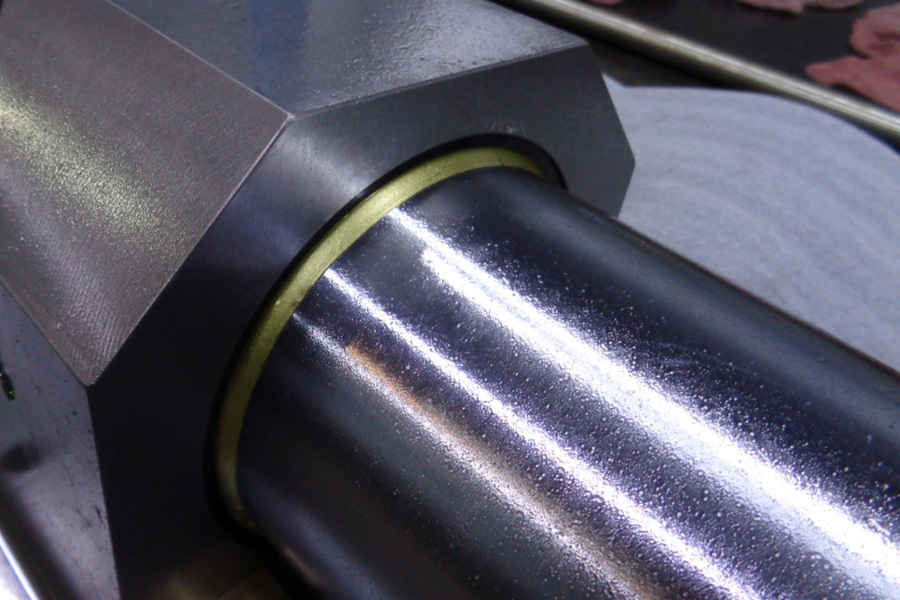

Close up of quill scraper

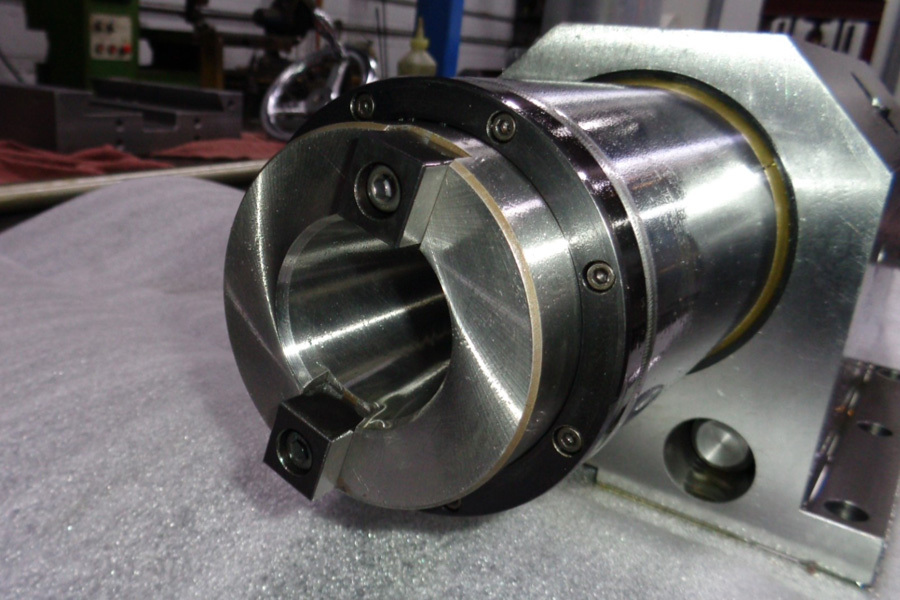

Close up of 40 NMTB spindle nose with keys

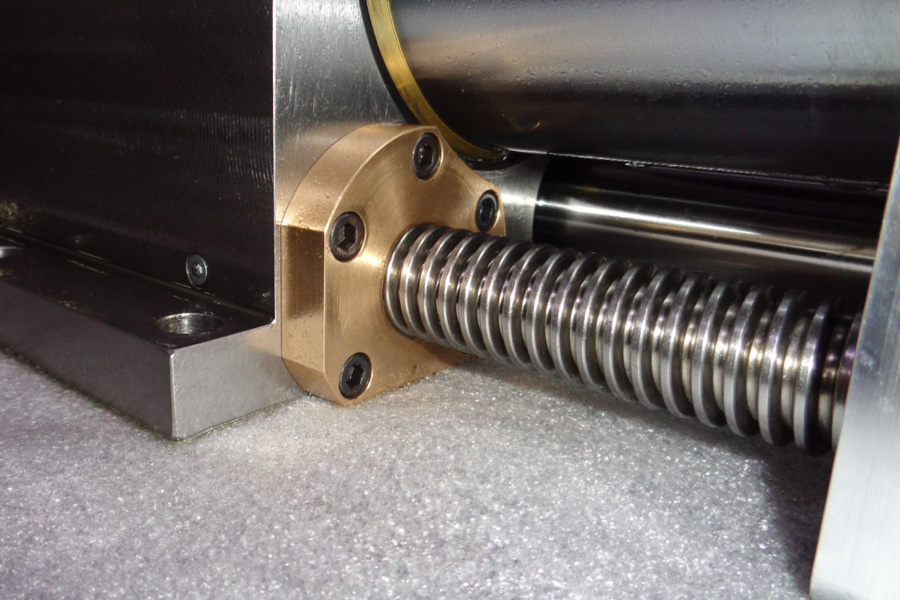

Close up of lead screw and lead screw nut

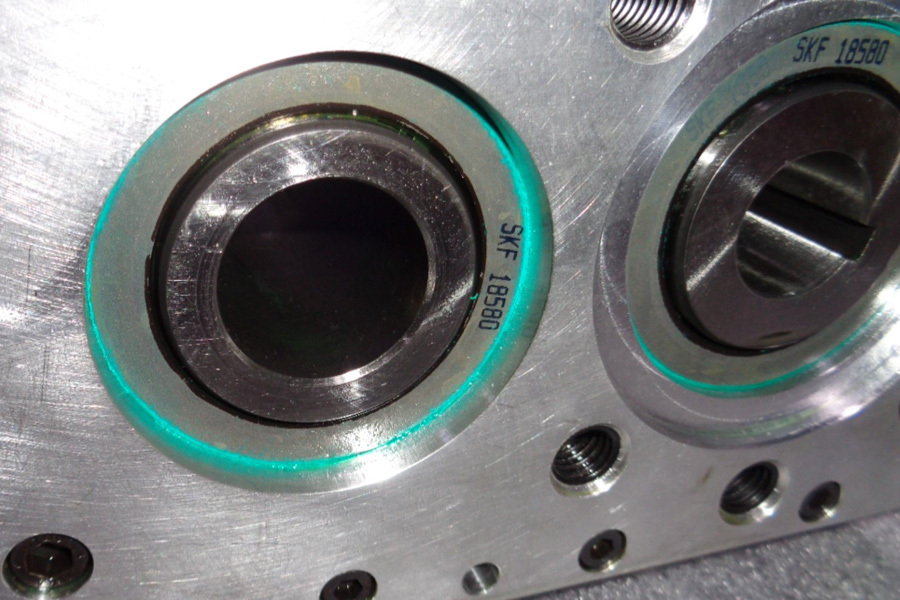

Close up of seal on gear shaft

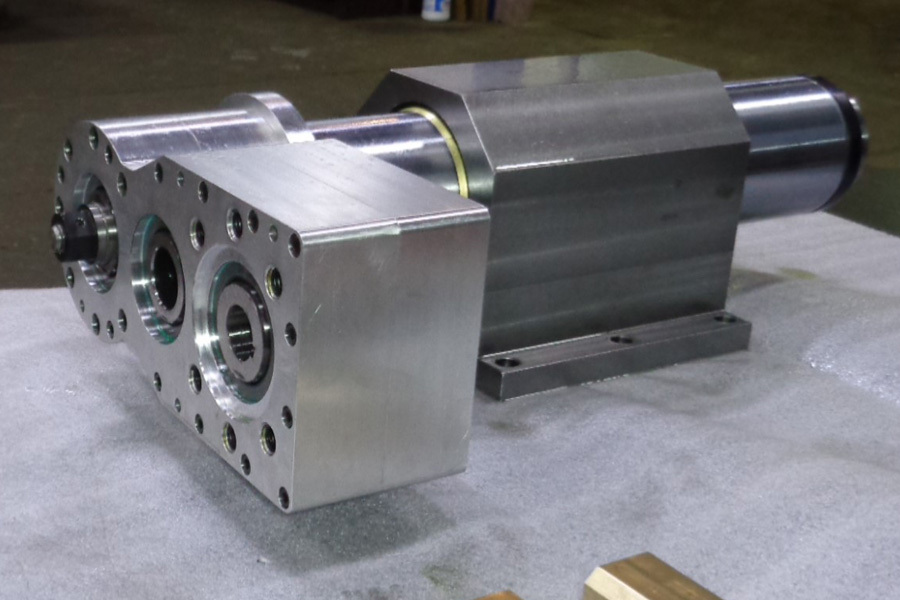

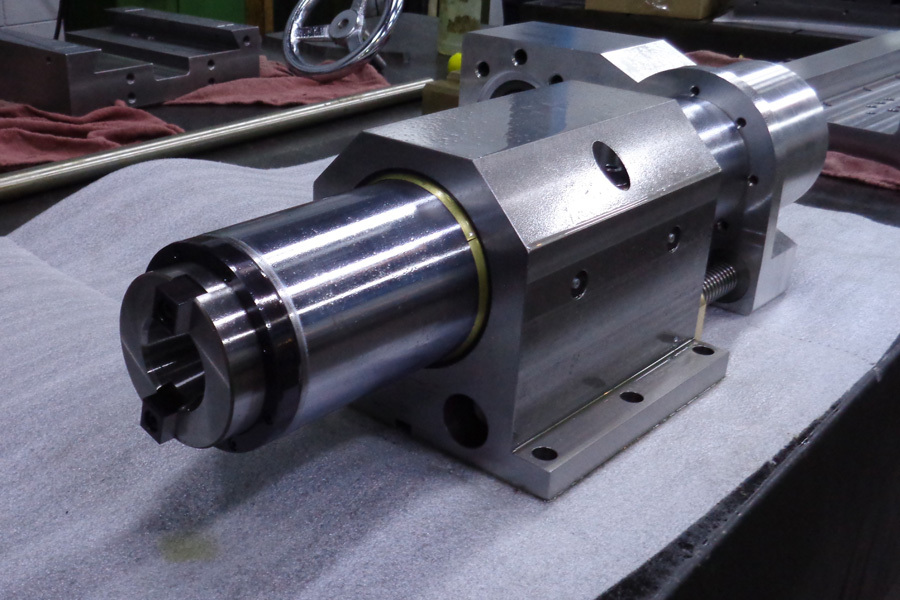

40 NMTB spindle nose with keys at left, quill clamp housing in the center and flange and gear box in back.

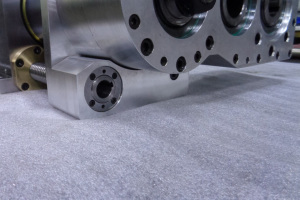

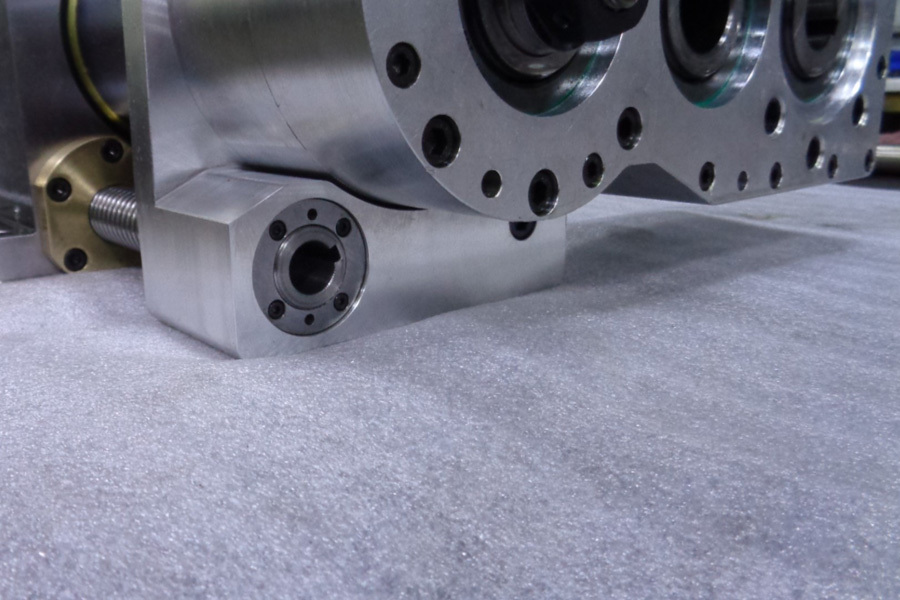

Close up of the lead screw power take off
