Heavy Service Dovetail Machine Slides
Milwaukee MachineTool Corporation manufactures HS and HSD Series dovetail machine slides for applications requiring extra-heavy load support, rigid construction and accurate travel. Each metal machine slide is built with a cast iron base and saddle to provide the stability needed for demanding machining, feed and positioning operations.
Designed for larger machine envelopes and heavier production requirements, these extra heavy-duty slides give engineers a durable solution for controlled linear movement. Contact us today for help comparing HS and HSD models based on slide size, travel, weight and drive requirements.
Heavy Service (HS) Slide Series
The Heavy Service (HS) Slide Series is an extra-heavy dovetail machine slide designed for applications requiring high rigidity without an integrated drive screw. HS slides are well-suited for externally driven or manually positioned systems where load support, stable travel and durable sliding contact are key selection factors.
Heavy Service (HS) Slide Features
HS slides use a robust cast iron base and saddle to support heavier loads in machining and production environments. Their dovetail design provides broad sliding contact, and the heavy service construction helps maintain stability under demanding operating conditions.
Heavy Service (HS) Slide Specs
Compare model size, travel, mounting dimensions, weight and related specifications to match HS slide capacity with the machine envelope, load requirements and positioning range.

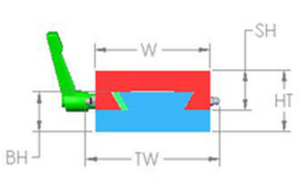

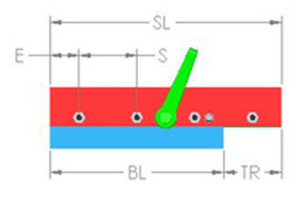

Heavy Service Dovetail Slide Size Guide
Please refer to the figures below in correlation with the dimensions chart.
Heavy Service Dovetail Slide Dimensions Chart
Heavy Service Dovetail Slide Dimensions |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions in Inches | ||||||||||||
| Model | Width W | TR | TW | HT | BH | SH | SL | BL | Gib Screws | Gib Screw Spacing | Weight (lb) | |
| S | E | |||||||||||
| HS4-6-8 | 4 | 2 | 5.13 | 2.13 | 1.38 | 1.38 | 8 | 6 | 5 | 1.63 | .75 | 15.8 |
| HS4-8-12 | 4 | 5.13 | 2.13 | 1.38 | 1.38 | 12 | 8 | 7 | 1.68 | .94 | 22 | |
| HS6-8-12 | 6 | 4 | 6.81 | 2.88 | 1.50 | 2.00 | 12 | 8 | 7 | 1.68 | .94 | 46 |
| HS6-10-16 | 6 | 6.81 | 2.88 | 1.50 | 2.00 | 16 | 10 | 9 | 1.81 | .75 | 60 | |
| HS8-12-18 | 8 | 6 | 8.81 | 3.13 | 1.88 | 2.00 | 18 | 12 | 9 | 2.00 | 1.00 | 97 |
| HS8-16-24 | 8 | 8.81 | 3.13 | 1.88 | 2.00 | 24 | 16 | 12 | 2.00 | 1.00 | 130 | |
Heavy Service with Drive Screw (HSD) Slide Series
The Heavy Service with Drive Screw (HSD) Slide Series adds screw-driven motion control to the HS dovetail slide platform. HSD slides are built for extra-heavy positioning applications requiring rigid support, repeatable adjustment and a durable mechanical drive arrangement.
Heavy Service with Drive Screw (HSD) Slide Features
HSD slides combine heavy service dovetail construction with an integrated drive screw for controlled travel across the stroke. This configuration supports precise feed movement in machine tool, fixture, automation and production equipment applications.
Heavy Service with Drive Screw (HSD) Slide Specs
Review available HSD slide dimensions, travel ranges, screw-driven configurations, mounting requirements and weight to determine which model fits the available space, required stroke and load profile.

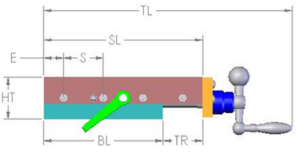

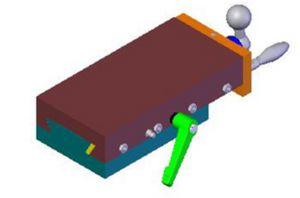

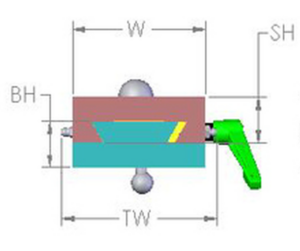

Heavy Service Dovetail With Drive Screw Size Guide
Please refer to the figures below in correlation with the dimensions chart.
Heavy Service Dovetail With Drive Screw Dimensions Chart
Heavy Service Dovetail With Drive Screw Dimensions |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions in Inches | ||||||||||||||
| Model | Width W | TR | TW | HT | BH | SH | SL | BL | TL | Gib Screws | Gib Screw Spacing | Leadscrew Drive | Weight (lb) | |
| S | E | |||||||||||||
| HS4-6-8-L(_) | 4 | 2 | 4.81 | 2.13 | 1.38 | 1.38 | 8 | 6 | 11.88 | 5 | 1.63 | .75 | 1/2-20 Vee or 1/2-10 Acme RH | 16.5 |
| HS4-8-12-L(_) | 4 | 4.81 | 2.13 | 1.38 | 1.38 | 12 | 8 | 15.88 | 7 | 1.68 | .94 | 22.75 | ||
| HS6-8-12-L(_) | 6 | 4 | 6.81 | 2.88 | 1.50 | 2.00 | 12 | 8 | 16.63 | 7 | 1.68 | .94 | 5/8-20 Vee or 5/8-10 Acme RH | 48 |
| HS6-10-16-L(_) | 6 | 6.81 | 2.88 | 1.50 | 2.00 | 16 | 10 | 20.63 | 9 | 1.81 | .75 | 62.5 | ||
| HS8-12-18-L(_) | 8 | 6 | 8.81 | 3.13 | 1.88 | 2.00 | 18 | 12 | 23.06 | 9 | 2.00 | 1.00 | 3/4-20 Vee or 3/4-10 Acme RH | 103 |
| HS8-16-24-L(_) | 8 | 8.81 | 3.13 | 1.88 | 2.00 | 24 | 16 | 29.06 | 12 | 2.00 | 1.00 | 145 | ||
Milwaukee MachineTool Advantage
Have an application in mind? Milwaukee Machine Tool Corporation designs and manufactures custom machine slides to meet specific load, accuracy, and environmental requirements.
Contact us to discuss your project, request a quote, or place an order.
