HHW & LHW Series Hardened Way Machine Slides
Milwaukee MachineTool Corporation manufactures hardened way machine slides for machining applications requiring rigid support, accurate travel and vibration resistance under heavy loads. HHW and LHW Series slides combine cast iron construction with hardened, precision-ground ways for dependable performance in machine tool, production and automation environments.
Available in high-profile and low-profile configurations, our hardened way machine slides help engineers match slide height, load requirements, travel range and drive style to equipment needs. Contact us today for help selecting the right model for your application.
High Profile Hardened Way Slide Series
The High Profile Hardened Way Slide Series is built for applications requiring additional slide height, stiffness and support for heavy-mounted components. HHW slides are a strong fit for machining systems, spindle feed units and production equipment where rigidity is a primary selection factor.
High Profile Hardened Way Slide Features
HHW slides feature hardened, precision-ground ways designed for wear resistance, stable travel and long service life. The high-profile design supports applications requiring greater clearance, added structural height or a stronger mounting platform for demanding machining operations.
High Profile Hardened Way Slide Specs
Compare HHW model dimensions, travel ranges, mounting requirements, slide weight and related specifications to match the slide assembly to the available machine envelope and load profile.
High Profile Hardened Way Slide Size Guide

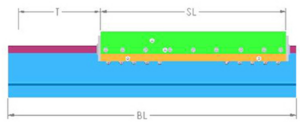

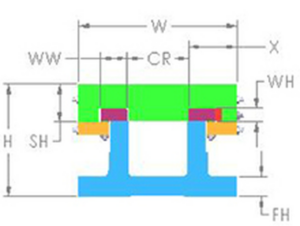

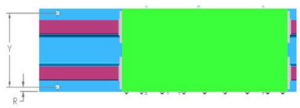

Please refer to the figures below in correlation with the dimensions chart.
High Profile Hardened Way Slide Dimensions Chart
High Profile Hardened Way Slide Dimensions |
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions in Inches | |||||||||||||
| Model | Width W | H | CR | WH | WW | SH | FH | T-BL | SL | X | Y | R | Mtg Screw |
| HHW5 | 5.00 | 3.50 | 1.87 | .50 | .88 | 1.50 | .63 | To Your Specs BL=CL+T +2 | ≥5 | 1.56 | 4.25 | .375 | 5/16 |
| HHW7 | 7.00 | 5.00 | 2.13 | .75 | 1.50 | 2.13 | .75 | ≥7 | 2.44 | 6.00 | .500 | 3/8 | |
| HHW9 | 9.00 | 6.38 | 3.50 | .75 | 1.50 | 2.13 | 1.13 | ≥9 | 2.75 | 8.00 | .500 | 3/8 | |
| HHW12 | 12.00 | 7.50 | 5.00 | 1.25 | 2.25 | 3.02 | 1.30 | ≥12 | 3.50 | 10.50 | .750 | 1/2 | |
| HHW15 | 15.00 | 9.50 | 5.50 | 1.50 | 2.88 | 3.76 | 1.50 | ≥15 | 4.75 | 13.50 | .750 | 5/8 | |
| HHW18 | 18.00 | 10.00 | 8.00 | 1.75 | 3.50 | 4.01 | 1.75 | ≥18 | 5.00 | 16.00 | 1.00 | 3/4 | |
| HHW20 | 20.00 | 12.00 | 7.50 | 2.00 | 4.00 | 4.38 | 2.00 | ≥20 | 6.25 | 18.00 | 1.00 | 3/4 | |
| HHW24 | 24.00 | 12.00 | 12.00 | 2.00 | 4.00 | 4.01 | 2.13 | ≥24 | 6.00 | 22.00 | 1.00 | 3/4 | |
| HHW32 | 32.00 | 13.00 | 20.00 | 2.00 | 4.00 | 4.96 | 2.13 | ≥32 | 6.00 | 30.00 | 1.00 | 3/4 | |
Low Profile Hardened Way Slide Series
The Low Profile Hardened Way Slide Series provides the strength and durability of a hardened way slide in a lower-height configuration. LHW slides are suited for equipment layouts with limited vertical space or applications requiring a compact slide with strong support.
Low Profile Hardened Way Slide Features
LHW slides use hardened, precision-ground ways to support accurate movement in heavy-load machining environments. The low-profile hardened way slide design helps reduce total assembly height while maintaining stiffness, stability and controlled linear travel.
Low Profile Hardened Way Slide Specs
Review LHW slide dimensions, travel options, mounting details, weight and clearance requirements to determine which low-profile model best fits the application.
Low Profile Hardened Way Slide Size Guide
Please refer to the figures below in correlation with the dimensions chart.
Low Profile Hardened Way Slide Dimensions Chart
Low Profile Hardened Way Slide Dimensions |
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions in Inches | |||||||||||||
| Model | Width W | H | CR | WH | WW | SH | FH | T-BL | SL | X | Y | R | Mtg Screw |
| LHW7 | 7.00 | 3.50 | 2.13 | .75 | 1.50 | 1.64 | .63 | To Your Specs BL=CL+T +2 | ≥7 | 2.44 | 6.00 | .500 | 3/8 |
| LHW9 | 9.00 | 4.38 | 3.50 | .75 | 1.50 | 1.97 | 1.00 | ≥9 | 2.75 | 8.00 | .500 | 3/8 | |
| LHW12 | 12.00 | 5.50 | 5.00 | 1.25 | 2.25 | 3.02 | 1.30 | ≥12 | 3.50 | 10.50 | .750 | 1/2 | |
| LHW15 | 15.00 | 6.75 | 5.50 | 1.50 | 2.88 | 3.30 | 1.50 | ≥15 | 4.75 | 13.50 | .750 | 5/8 | |
| LHW18 | 18.00 | 8.00 | 8.00 | 1.75 | 3.50 | 4.01 | 1.75 | ≥18 | 5.00 | 16.00 | 1.00 | 3/4 | |
| LHW20 | 20.00 | 10.00 | 7.50 | 2.00 | 4.00 | 4.38 | 2.00 | ≥20 | 6.25 | 18.00 | 1.00 | 3/4 | |
| LHW24 | 24.00 | 10.50 | 12.00 | 2.00 | 4.00 | 4.01 | 2.00 | ≥24 | 6.00 | 22.00 | 1.00 | 3/4 | |
Hardened Way Slide Drive Screw Series
The Hardened Way Slide Drive Screw Series adds mechanical screw-driven movement to a hardened way slide platform. This configuration is ideal for applications requiring controlled travel, repeatable adjustment and rigid support during machining or production use.
Hardened Way Slide Drive Screw Features
Drive screw hardened way slides combine precision-ground slide construction with controlled mechanical actuation. This setup supports feed movement, setup adjustment and positioning tasks where engineers need stiffness from the slide body with the added control of a screw drive.
Hardened Way Slide Drive Screw Specs
Compare drive screw slide dimensions, travel ranges, mounting requirements, screw configuration and related specifications to match the slide model with the required stroke, drive method and machine layout.
Hardened Way Slide Drive Screw Configurations Chart
Hardened Way Slide Drive Screw Configurations |
||||
|---|---|---|---|---|
| Dimensions in inches | ||||
| Slide Width | Lead Screw Drive | Ballscrew Drive | ||
| Vee Thread RH | ACME Thread RH | Rolled RH | Ground RH |
|
| 5 | - | Ø0.625-0.100 lead | Ø0.750-0.200 lead | - |
| 7 | - | Ø1.000-0.100 lead | Ø1.000-0.250 lead | Ø1.000-0.250 lead |
| 9 | - | Ø1.250 x 0.100 lead | Ø1.500-0.250 lead | Ø1.250-0.250 lead |
| 12 | - | Ø1.500-0.100 lead | Ø1.500-0.250 lead | Ø1.500-0.250 lead |
| 15 | - | Ø2.000-0.200 lead | Ø2.000-0.500 lead | Ø2.000-0.500 lead |
| 18 | - | Ø2.000-0.200 lead | Ø2.000-0.500 lead | Ø2.000-0.500 lead |
| 20 | - | Ø2.500-0.250 lead | Ø2.500-0.500 lead | Ø2.500-0.500 lead |
| 24 | - | Ø2.500-0.250 lead | Ø2.500-0.500 lead | Ø2.500-0.500 lead |
| 32 | - | Ø2.500-0.250 lead | Ø2.500-0.500 lead | Ø2.500-0.500 lead |
| TPI = Threads Per Inch - Metric leads are available | ||||
| • Leadscrew drives come with preloaded needle thrust bearings, micrometer dial and hand crank | ||||
| • Ballscrew drives come with preloaded ball bearing drive support unit | ||||
Hardened Way Slide Cylinder Drive Series
The Hardened Way Slide Cylinder Drive Series supports powered linear movement through cylinder-driven actuation. Our slides are built for automated feed applications, repeated production cycles and equipment requiring rigid, hardened way construction with powered motion.
Hardened Way Slide Cylinder Drive Features
Cylinder drive hardened way slides pair durable slide construction with pneumatic or hydraulic actuation options for repeatable machine movement. This design supports automated operations where consistent travel, load support and production-ready motion are required.
Hardened Way Slide Cylinder Drive Specs
Review cylinder drive slide dimensions, travel options, mounting requirements, bore details, pressure ratings and related specifications to select the proper configuration for the required force, stroke and operating environment.
Hardened Way Slide Cylinder Drive Specifications Chart
Hardened Way Slide Cylinder Drive Specifications |
||||
|---|---|---|---|---|
| Dimensions in inches | ||||
| Slide Width | Heavy Duty Pneumatic Cylinder | Medium Duty Hydraulic Cylinder* | ||
| Bore Ø (in) | Max Pressure (PSI) | Bore Ø (in) | Max Pressure (PSI) | |
| 5 | 2.0 | 250 | 1.5 | 650 |
| 7 | 2.5 | 250 | 2.0 | 500 |
| 9 | 3.25 | 250 | 2.5 | 300 |
| 12 | 4.0 | 250 | 3.25 | 650 |
| 15 | 5.0 | 250 | 4.0 | 450 |
| 18 | - | - | 4.0 | 450 |
| 20 | - | - | 4.0 | 450 |
| 24 | - | - | 5.0 | 300 |
| * With head rectangular flange mounting; other styles have higher pressure ratings | ||||
| • Cylinders come equipped with adjustable cushions on both ends | ||||
| • Linear alignment rod coupling and adjustable stop rod are standard on all cylinder powered slides | ||||
Milwaukee MachineTool Advantage
Milwaukee MachineTool Corporation builds hardened way slides for engineers, OEMs and production teams needing rigid, accurate motion components for demanding machining environments. HHW and LHW Series slides provide profile options, hardened sliding surfaces and drive configurations for equipment requiring strength, precision and long-term reliability.
Our team can help evaluate slide profile, load conditions, drive style, travel range, mounting space and model dimensions before ordering. Contact Milwaukee MachineTool Corporation to discuss hardened way slides for your machine build, retrofit or custom automation system.
