Low Profile & High Profile Linear Guide Machine Slides
Milwaukee MachineTool Corporation manufactures linear guide slides for machine tool, production and automation applications requiring smooth travel, precise movement and strong load support. Available in low-profile and high-profile configurations, our precision slides use linear bearing slide rails to support accurate motion across a range of machine layouts.
Our linear guide slide models include ball bearing and roller bearing options and customizable drive screw configurations giving engineers flexibility when balancing friction, rigidity, load capacity and available space. Contact us today for help comparing slide profile, bearing style, travel range and mounting requirements for your application.
Low Profile Linear Guide Slide with Ball Bearing (LBW) Series
The LBW Series is a low-profile linear ball bearing slide designed for compact equipment layouts requiring smooth motion and accurate travel. This series is a strong fit for positioning, feed, inspection and automation applications where vertical space is limited.
Low Profile Linear Guide Slide with Ball Bearing (LBW) Series Features
LBW slides combine a compact profile with ball bearing motion for low-friction travel and efficient movement. This design supports lighter-duty precision positioning while helping reduce overall slide assembly height.
Low Profile Linear Guide Slide with Ball Bearing (LBW) Series Specs
Compare LBW slide dimensions, travel options, mounting requirements, drive screw configurations, bearing style and weight to match the slide assembly to the available space and positioning range.
Low Profile Linear Guide Slide Size Guide
Low Profile Linear Guide Slide Dimensions Chart
Low Profile Linear Guide Slide Dimensions (LBW / LRW) |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions in Inches | ||||||||||||||
| Model | Width W | H | C | E | FH | Y | F | D | A | B | L | CL | T-BL | Mtg Screw |
| LBW6 LRW6 | 6.00 | 3.00 | 3.14 | .94 | .75 | 4.90 | 1.43 | 1.03 | 3.00 | .55 | 1.38 | ≥6 | To Your Specs BL=CL+T +2 | 3/8 |
| LBW8 LRW8 | 8.00 | 3.25 | 4.26 | 1.18 | .75 | 6.56 | 1.87 | 1.03 | 4.00 | .72 | 1.62 | ≥8 | 3/8 | |
| LBW10 LRW10 | 10.00 | 3.75 | 5.74 | 1.42 | .81 | 8.36 | 2.13 | 1.17 | 5.00 | .82 | 1.88 | ≥10 | 1/2 | |
| LBW12 LRW12 | 12.00 | 4.00 | 6.54 | 1.89 | .75 | 9.96 | 2.73 | 1.06 | 6.00 | 1.02 | 2.00 | ≥12 | 1/2 | |
| LBW16 LRW16 | 16.00 | 5.00 | 8.58 | 2.36 | .94 | 13.22 | 3.71 | 1.32 | 8.00 | 1.39 | 2.50 | ≥16 | 5/8 | |
| LBW20 LRW20 | 20.00 | 6.00 | 10.90 | 2.76 | 1.31 | 16.42 | 4.55 | 1.62 | 10.00 | 1.74 | 3.00 | ≥20 | 5/8 | |
| LBW24 LRW24 | 24.00 | 7.00 | 12.48 | 3.35 | 1.56 | 19.50 | 5.76 | 1.83 | 12.00 | 2.25 | 3.50 | ≥24 | 5/8 | |
Low Profile Linear Guide Slide Drive Screw Configurations Chart
Low Profile Linear Guide Slide Drive Screw Configurations (LBW / LRW) |
||||
|---|---|---|---|---|
| Dimensions in inches | ||||
| Slide Width | Lead Screw Drive | Ballscrew Drive | ||
| Vee Thread RH | ACME Thread RH | Rolled RH | Ground RH |
|
| 6 | 5/8-20 TPI | 5/8-10 TPI | Ø0.625 x 0.200 lead | Ø0.625 x 0.200 lead |
| 8 | 3/4-20 TPI | 3/4-10 TPI | Ø0.750 x 0.200 lead | Ø0.750 x 0.200 lead, x 0.250 lead |
| 10 | - | 1-10 TPI | Ø1.000 x 0.200 lead | Ø1.000 x 0.200 lead, x 0.250 lead |
| 12 | - | 1-10 TPI | Ø1.250 x 0.200 lead | Ø1.250 x 0.200 lead, x 0.250 lead |
| 16 | - | 1 1/4-10 TPI | Ø1.250 x 0.200 lead | Ø1.250 x 0.200 lead, x 0.250 lead |
| 20 | - | 1 1/4-10 TPI | Ø1.500 x 0.200 lead | Ø1.500 x 0.200 lead, x 0.250 lead |
| 24 | - | 1 1/2-10 TPI | Ø2.000 x 0.200 lead | Ø2.000 x 0.200 lead, x 0.250 lead |
| TPI = Threads Per Inch - Metric leads are available | ||||
| • Leadscrew drives come with preloaded needle thrust bearings, micrometer dial and hand crank | ||||
| • Ballscrew drives come with preloaded ball bearing drive support unit | ||||
Linear Guide Specifications*
Linear Guide Specifications* |
|||||
|---|---|---|---|---|---|
| Slide Width (inch) | Bearing Size (mm) | Basic Load Capacity Ball Bearing (lb) | Basic Load Capacity Roller Bearing (lb) |
||
| Static | Dynamic | Static | Dynamic | ||
| 6, 7, 8 | 15 | 3035 | 1750 | 4470 | 2115 |
| 9, 10 | 25 | 6835 | 5125 | 15,735 | 7485 |
| 12, 15 | 35 | 12,140 | 9420 | 33,565 | 15,670 |
| 16, 18, 20, 24 | 45 | 19,265 | 15,310 | 57,685 | 26,795 |
| 32 | 55 | 27,290 | 20,020 | 77,630 | 37,095 |
| * For comparative purposes only - Contact Us for slide selection | |||||
Linear Guide Slide Cylinder Drive Specifications |
||||
|---|---|---|---|---|
| Dimensions in inches | ||||
| Slide Width | Heavy Duty Pneumatic Cylinder | Medium Duty Hydraulic Cylinder* | ||
| Bore Ø (in) | Max Pressure (PSI) | Bore Ø (in) | Max Pressure (PSI) | |
| 6, 7 | 2.5 | 250 | 2.0 | 500 |
| 8, 9 | 3.25 | 250 | 2.5 | 300 |
| 10, 12 | 4.0 | 250 | 3.25 | 650 |
| 15 | 5.0 | 250 | 4.0 | 450 |
| 16, 18 | 6.0 | 250 | 4.0 | 450 |
| 20 | 6.0 | 250 | 4.0 | 450 |
| 24 | 6.0 | 250 | 5.0 | 300 |
| * With head rectangular flange mounting; other styles have higher pressure ratings | ||||
| • Cylinders come equipped with adjustable cushions on both ends | ||||
| • Linear alignment rod coupling and adjustable stop rod are standard on all cylinder powered slides | ||||
Low Profile Linear Guide Slide with Roller Bearing (LRW) Series
The LRW Series provides a low-profile linear roller bearing slide for applications requiring greater rigidity or load support than a ball bearing configuration. LRW slides suit compact machine layouts where load capacity and controlled travel both matter.
Low Profile Linear Guide Slide with Roller Bearing (LRW) Series Features
LRW slides use roller bearing linear guide construction to provide increased contact area and higher rigidity in a compact slide package. This configuration is useful for low-profile equipment requiring heavy-duty linear bearing slide rails within a constrained machine envelope.
Low Profile Linear Guide Slide with Roller Bearing (LRW) Series Specs
Review LRW dimensions, travel ranges, mounting details, roller bearing configuration, drive screw configurations and weight to select a low-profile model for the required load and stroke.
Low Profile Linear Guide Slide Size Guide
Low Profile Linear Guide Slide Dimensions Chart
Low Profile Linear Guide Slide Dimensions (LBW / LRW) |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions in Inches | ||||||||||||||
| Model | Width W | H | C | E | FH | Y | F | D | A | B | L | CL | T-BL | Mtg Screw |
| LBW6 LRW6 | 6.00 | 3.00 | 3.14 | .94 | .75 | 4.90 | 1.43 | 1.03 | 3.00 | .55 | 1.38 | ≥6 | To Your Specs BL=CL+T +2 | 3/8 |
| LBW8 LRW8 | 8.00 | 3.25 | 4.26 | 1.18 | .75 | 6.56 | 1.87 | 1.03 | 4.00 | .72 | 1.62 | ≥8 | 3/8 | |
| LBW10 LRW10 | 10.00 | 3.75 | 5.74 | 1.42 | .81 | 8.36 | 2.13 | 1.17 | 5.00 | .82 | 1.88 | ≥10 | 1/2 | |
| LBW12 LRW12 | 12.00 | 4.00 | 6.54 | 1.89 | .75 | 9.96 | 2.73 | 1.06 | 6.00 | 1.02 | 2.00 | ≥12 | 1/2 | |
| LBW16 LRW16 | 16.00 | 5.00 | 8.58 | 2.36 | .94 | 13.22 | 3.71 | 1.32 | 8.00 | 1.39 | 2.50 | ≥16 | 5/8 | |
| LBW20 LRW20 | 20.00 | 6.00 | 10.90 | 2.76 | 1.31 | 16.42 | 4.55 | 1.62 | 10.00 | 1.74 | 3.00 | ≥20 | 5/8 | |
| LBW24 LRW24 | 24.00 | 7.00 | 12.48 | 3.35 | 1.56 | 19.50 | 5.76 | 1.83 | 12.00 | 2.25 | 3.50 | ≥24 | 5/8 | |
Low Profile Linear Guide Slide Drive Screw Configurations Chart
Low Profile Linear Guide Slide Drive Screw Configurations (LBW / LRW) |
||||
|---|---|---|---|---|
| Dimensions in inches | ||||
| Slide Width | Lead Screw Drive | Ballscrew Drive | ||
| Vee Thread RH | ACME Thread RH | Rolled RH | Ground RH |
|
| 6 | 5/8-20 TPI | 5/8-10 TPI | Ø0.625 x 0.200 lead | Ø0.625 x 0.200 lead |
| 8 | 3/4-20 TPI | 3/4-10 TPI | Ø0.750 x 0.200 lead | Ø0.750 x 0.200 lead, x 0.250 lead |
| 10 | - | 1-10 TPI | Ø1.000 x 0.200 lead | Ø1.000 x 0.200 lead, x 0.250 lead |
| 12 | - | 1-10 TPI | Ø1.250 x 0.200 lead | Ø1.250 x 0.200 lead, x 0.250 lead |
| 16 | - | 1 1/4-10 TPI | Ø1.250 x 0.200 lead | Ø1.250 x 0.200 lead, x 0.250 lead |
| 20 | - | 1 1/4-10 TPI | Ø1.500 x 0.200 lead | Ø1.500 x 0.200 lead, x 0.250 lead |
| 24 | - | 1 1/2-10 TPI | Ø2.000 x 0.200 lead | Ø2.000 x 0.200 lead, x 0.250 lead |
| TPI = Threads Per Inch - Metric leads are available | ||||
| • Leadscrew drives come with preloaded needle thrust bearings, micrometer dial and hand crank | ||||
| • Ballscrew drives come with preloaded ball bearing drive support unit | ||||
Linear Guide Specifications*
Linear Guide Specifications* |
|||||
|---|---|---|---|---|---|
| Slide Width (inch) | Bearing Size (mm) | Basic Load Capacity Ball Bearing (lb) | Basic Load Capacity Roller Bearing (lb) |
||
| Static | Dynamic | Static | Dynamic | ||
| 6, 7, 8 | 15 | 3035 | 1750 | 4470 | 2115 |
| 9, 10 | 25 | 6835 | 5125 | 15,735 | 7485 |
| 12, 15 | 35 | 12,140 | 9420 | 33,565 | 15,670 |
| 16, 18, 20, 24 | 45 | 19,265 | 15,310 | 57,685 | 26,795 |
| 32 | 55 | 27,290 | 20,020 | 77,630 | 37,095 |
| * For comparative purposes only - Contact Us for slide selection | |||||
Linear Guide Slide Cylinder Drive Specifications |
||||
|---|---|---|---|---|
| Dimensions in inches | ||||
| Slide Width | Heavy Duty Pneumatic Cylinder | Medium Duty Hydraulic Cylinder* | ||
| Bore Ø (in) | Max Pressure (PSI) | Bore Ø (in) | Max Pressure (PSI) | |
| 6, 7 | 2.5 | 250 | 2.0 | 500 |
| 8, 9 | 3.25 | 250 | 2.5 | 300 |
| 10, 12 | 4.0 | 250 | 3.25 | 650 |
| 15 | 5.0 | 250 | 4.0 | 450 |
| 16, 18 | 6.0 | 250 | 4.0 | 450 |
| 20 | 6.0 | 250 | 4.0 | 450 |
| 24 | 6.0 | 250 | 5.0 | 300 |
| * With head rectangular flange mounting; other styles have higher pressure ratings | ||||
| • Cylinders come equipped with adjustable cushions on both ends | ||||
| • Linear alignment rod coupling and adjustable stop rod are standard on all cylinder powered slides | ||||
High Profile Linear Guide Slide with Ball Bearing (HBW) Series
The HBW Series is a high-profile linear ball bearing slide for applications requiring smooth precision movement with added slide height. HBW slides work well for spindle feed, machine positioning and automated motion systems where low-friction travel is a key design requirement.
High Profile Linear Guide Slide with Ball Bearing (HBW) Series Features
HBW slides pair high-profile slide construction with ball bearing guide rails for smooth linear travel and precise positioning. This configuration supports machine designs requiring added height, accessibility or clearance around the slide assembly.
High Profile Linear Guide Slide with Ball Bearing (HBW) Series Specs
Compare HBW slide dimensions, travel options, mounting requirements, drive screw configurations, ball bearing guide details and weight to determine which model fits the machine layout and motion requirements.
High Profile Linear Guide Slide Size Guide

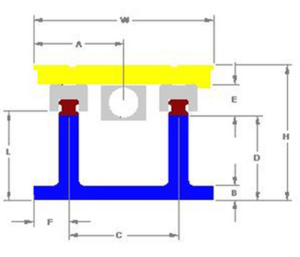

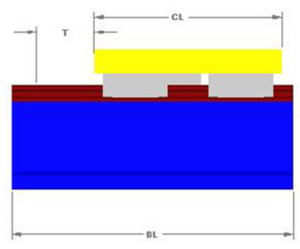

Please refer to the figures below in correlation with the dimensions chart.
High Profile Linear Guide Slide Dimensions Chart
High Profile Linear Guide Slide Dimensions (HBW / HRW) |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions in Inches | ||||||||||||
| Model | Width W | H | C | E | F | D | A | B | L | CL | T-BL | Mtg Screw |
| HBW7 HRW7 | 7.00 | 5.00 | 3.57 | .94 | 1.72 | 3.06 | 3.50 | .65 | 2.75 | ≥7 | To Your Specs BL=CL+T +2 | 3/8 |
| HBW9 HRW9 | 9.00 | 6.38 | 3.50 | .75 | 1.50 | 2.13 | 1.13 | 1.00 | 3.88 | ≥9 | 1/2 | |
| HBW12 HRW12 | 12.00 | 7.50 | 5.00 | 1.25 | 2.25 | 3.02 | 1.30 | 1.30 | 5.53 | ≥12 | 5/8 | |
| HBW15 HRW15 | 15.00 | 9.50 | 5.50 | 1.50 | 2.88 | 3.76 | 1.50 | 1.50 | 6.38 | ≥15 | 5/8 | |
| HBW18 HRW18 | 18.00 | 10.00 | 8.00 | 1.75 | 3.50 | 4.01 | 1.75 | 1.80 | 7.18 | ≥18 | 3/4 | |
| HBW24 HRW24 | 24.00 | 12.00 | 12.00 | 2.00 | 4.00 | 4.01 | 2.13 | 2.00 | 8.31 | ≥24 | 3/4 | |
| HBW32 HRW32 | 32.00 | 13.00 | 20.00 | 2.00 | 4.00 | 4.96 | 2.13 | 2.00 | 8.31 | ≥32 | 3/4 | |
High Profile Linear Guide Slide Drive Screw Configurations Chart
High Profile Linear Guide Slide Drive Screw Configurations (HBW / HRW) |
||||
|---|---|---|---|---|
| Dimensions in inches | ||||
| Slide Width | Lead Screw Drive | Ballscrew Drive | ||
| Vee Thread RH | ACME Thread RH | Rolled RH | Ground RH |
|
| 7 | - | Ø1.000-0.100 lead | Ø1.000-0.250 lead | Ø1.000-0.250 lead |
| 9 | - | Ø1.250-0.100 lead | Ø1.500-0.250 lead | Ø1.250-0.250 lead |
| 12 | - | Ø1.500-0.100 lead | Ø1.500-0.250 lead | Ø1.500-0.250 lead |
| 15 | - | Ø2.000-0.200 lead | Ø2.000-0.500 lead | Ø2.000-0.500 lead |
| 18 | - | Ø2.000-0.200 lead | Ø2.000-0.500 lead | Ø2.000-0.500 lead |
| 20 | - | Ø2.500-0.250 lead | Ø2.500-0.500 lead | Ø2.500-0.500 lead |
| 24 | - | Ø2.500-0.250 lead | Ø2.500-0.500 lead | Ø2.500-0.500 lead |
| TPI = Threads Per Inch - Metric leads are available | ||||
| • Leadscrew drives come with preloaded needle thrust bearings, micrometer dial and hand crank | ||||
| • Ballscrew drives come with preloaded ball bearing drive support unit | ||||
Linear Guide Specifications*
Linear Guide Specifications* |
|||||
|---|---|---|---|---|---|
| Slide Width (inch) | Bearing Size (mm) | Basic Load Capacity Ball Bearing (lb) | Basic Load Capacity Roller Bearing (lb) |
||
| Static | Dynamic | Static | Dynamic | ||
| 6, 7, 8 | 15 | 3035 | 1750 | 4470 | 2115 |
| 9, 10 | 25 | 6835 | 5125 | 15,735 | 7485 |
| 12, 15 | 35 | 12,140 | 9420 | 33,565 | 15,670 |
| 16, 18, 20, 24 | 45 | 19,265 | 15,310 | 57,685 | 26,795 |
| 32 | 55 | 27,290 | 20,020 | 77,630 | 37,095 |
| * For comparative purposes only - Contact Us for slide selection | |||||
Linear Guide Slide Cylinder Drive Specifications |
||||
|---|---|---|---|---|
| Dimensions in inches | ||||
| Slide Width | Heavy Duty Pneumatic Cylinder | Medium Duty Hydraulic Cylinder* | ||
| Bore Ø (in) | Max Pressure (PSI) | Bore Ø (in) | Max Pressure (PSI) | |
| 6, 7 | 2.5 | 250 | 2.0 | 500 |
| 8, 9 | 3.25 | 250 | 2.5 | 300 |
| 10, 12 | 4.0 | 250 | 3.25 | 650 |
| 15 | 5.0 | 250 | 4.0 | 450 |
| 16, 18 | 6.0 | 250 | 4.0 | 450 |
| 20 | 6.0 | 250 | 4.0 | 450 |
| 24 | 6.0 | 250 | 5.0 | 300 |
| * With head rectangular flange mounting; other styles have higher pressure ratings | ||||
| • Cylinders come equipped with adjustable cushions on both ends | ||||
| • Linear alignment rod coupling and adjustable stop rod are standard on all cylinder powered slides | ||||
High Profile Linear Guide Slide with Roller Bearing (HRW) Series
The HRW Series combines a high-profile slide body with roller bearing linear guides for applications requiring heavier load support and rigid motion. HRW slides are suited for demanding production equipment, machining systems and automated assemblies requiring heavy-duty linear bearing slide rails.
High Profile Linear Guide Slide with Roller Bearing (HRW) Series Features
HRW slides use linear roller bearing slide construction to increase rigidity while maintaining smooth guided movement. The high-profile format supports larger components, heavier-duty setups and applications where stiffness is a key selection factor.
High Profile Linear Guide Slide with Roller Bearing (HRW) Series Specs
Review HRW dimensions, travel ranges, mounting details, drive screw configurations, roller bearing configuration and weight to match the slide model to the required load, stroke and available machine space.
High Profile Linear Guide Slide Size Guide
Please refer to the figures below in correlation with the dimensions chart.
High Profile Linear Guide Slide Dimensions Chart
High Profile Linear Guide Slide Dimensions (HBW / HRW) |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions in Inches | ||||||||||||
| Model | Width W | H | C | E | F | D | A | B | L | CL | T-BL | Mtg Screw |
| HBW7 HRW7 | 7.00 | 5.00 | 3.57 | .94 | 1.72 | 3.06 | 3.50 | .65 | 2.75 | ≥7 | To Your Specs BL=CL+T +2 | 3/8 |
| HBW9 HRW9 | 9.00 | 6.38 | 3.50 | .75 | 1.50 | 2.13 | 1.13 | 1.00 | 3.88 | ≥9 | 1/2 | |
| HBW12 HRW12 | 12.00 | 7.50 | 5.00 | 1.25 | 2.25 | 3.02 | 1.30 | 1.30 | 5.53 | ≥12 | 5/8 | |
| HBW15 HRW15 | 15.00 | 9.50 | 5.50 | 1.50 | 2.88 | 3.76 | 1.50 | 1.50 | 6.38 | ≥15 | 5/8 | |
| HBW18 HRW18 | 18.00 | 10.00 | 8.00 | 1.75 | 3.50 | 4.01 | 1.75 | 1.80 | 7.18 | ≥18 | 3/4 | |
| HBW24 HRW24 | 24.00 | 12.00 | 12.00 | 2.00 | 4.00 | 4.01 | 2.13 | 2.00 | 8.31 | ≥24 | 3/4 | |
| HBW32 HRW32 | 32.00 | 13.00 | 20.00 | 2.00 | 4.00 | 4.96 | 2.13 | 2.00 | 8.31 | ≥32 | 3/4 | |
High Profile Linear Guide Slide Drive Screw Configurations Chart
High Profile Linear Guide Slide Drive Screw Configurations (HBW / HRW) |
||||
|---|---|---|---|---|
| Dimensions in inches | ||||
| Slide Width | Lead Screw Drive | Ballscrew Drive | ||
| Vee Thread RH | ACME Thread RH | Rolled RH | Ground RH |
|
| 7 | - | Ø1.000-0.100 lead | Ø1.000-0.250 lead | Ø1.000-0.250 lead |
| 9 | - | Ø1.250-0.100 lead | Ø1.500-0.250 lead | Ø1.250-0.250 lead |
| 12 | - | Ø1.500-0.100 lead | Ø1.500-0.250 lead | Ø1.500-0.250 lead |
| 15 | - | Ø2.000-0.200 lead | Ø2.000-0.500 lead | Ø2.000-0.500 lead |
| 18 | - | Ø2.000-0.200 lead | Ø2.000-0.500 lead | Ø2.000-0.500 lead |
| 20 | - | Ø2.500-0.250 lead | Ø2.500-0.500 lead | Ø2.500-0.500 lead |
| 24 | - | Ø2.500-0.250 lead | Ø2.500-0.500 lead | Ø2.500-0.500 lead |
| TPI = Threads Per Inch - Metric leads are available | ||||
| • Leadscrew drives come with preloaded needle thrust bearings, micrometer dial and hand crank | ||||
| • Ballscrew drives come with preloaded ball bearing drive support unit | ||||
Linear Guide Specifications*
Linear Guide Specifications* |
|||||
|---|---|---|---|---|---|
| Slide Width (inch) | Bearing Size (mm) | Basic Load Capacity Ball Bearing (lb) | Basic Load Capacity Roller Bearing (lb) |
||
| Static | Dynamic | Static | Dynamic | ||
| 6, 7, 8 | 15 | 3035 | 1750 | 4470 | 2115 |
| 9, 10 | 25 | 6835 | 5125 | 15,735 | 7485 |
| 12, 15 | 35 | 12,140 | 9420 | 33,565 | 15,670 |
| 16, 18, 20, 24 | 45 | 19,265 | 15,310 | 57,685 | 26,795 |
| 32 | 55 | 27,290 | 20,020 | 77,630 | 37,095 |
| * For comparative purposes only - Contact Us for slide selection | |||||
Linear Guide Slide Cylinder Drive Specifications |
||||
|---|---|---|---|---|
| Dimensions in inches | ||||
| Slide Width | Heavy Duty Pneumatic Cylinder | Medium Duty Hydraulic Cylinder* | ||
| Bore Ø (in) | Max Pressure (PSI) | Bore Ø (in) | Max Pressure (PSI) | |
| 6, 7 | 2.5 | 250 | 2.0 | 500 |
| 8, 9 | 3.25 | 250 | 2.5 | 300 |
| 10, 12 | 4.0 | 250 | 3.25 | 650 |
| 15 | 5.0 | 250 | 4.0 | 450 |
| 16, 18 | 6.0 | 250 | 4.0 | 450 |
| 20 | 6.0 | 250 | 4.0 | 450 |
| 24 | 6.0 | 250 | 5.0 | 300 |
| * With head rectangular flange mounting; other styles have higher pressure ratings | ||||
| • Cylinders come equipped with adjustable cushions on both ends | ||||
| • Linear alignment rod coupling and adjustable stop rod are standard on all cylinder powered slides | ||||
Milwaukee MachineTool Advantage
Milwaukee MachineTool Corporation builds linear guide slides for engineers and OEMs needing precision components for machine tool and automation applications. Our LBW, LRW, HBW and HRW Series slides offer multiple profile heights and bearing styles, helping teams match the slide assembly to specific load, travel and space requirements.
Our team can help evaluate bearing type, slide profile, machine envelope, travel range and mounting needs before ordering. Contact Milwaukee MachineTool Corporation to discuss linear guide slides for your next machine build, retrofit or custom automation system.
